Removal And Installation

Remove the front wheel and tire (A) from front hub.
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb.ft)

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake caliper mounting bolts, and then place the brake caliper assembly (B) with wire.
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the caulking nut (A).
Tightening torque:

294.2~ 313.8 N.m (30.0 ~ 32.0 kgf.m, 217.0 ~ 231.5lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Caulking depth: 1.5 mm (0.591 in.)

Courtesy of KIA MOTORS AMERICA, INC.
- The front hub caulking nut should be replaced with a new one.
- After installing caulking nut (A), firmly fix the caulking nut using a chisel and hammer as shown in the illustration below.
Remove the wheel speed sensor (A) and brake hose bracket bolt (B).

Courtesy of KIA MOTORS AMERICA, INC.

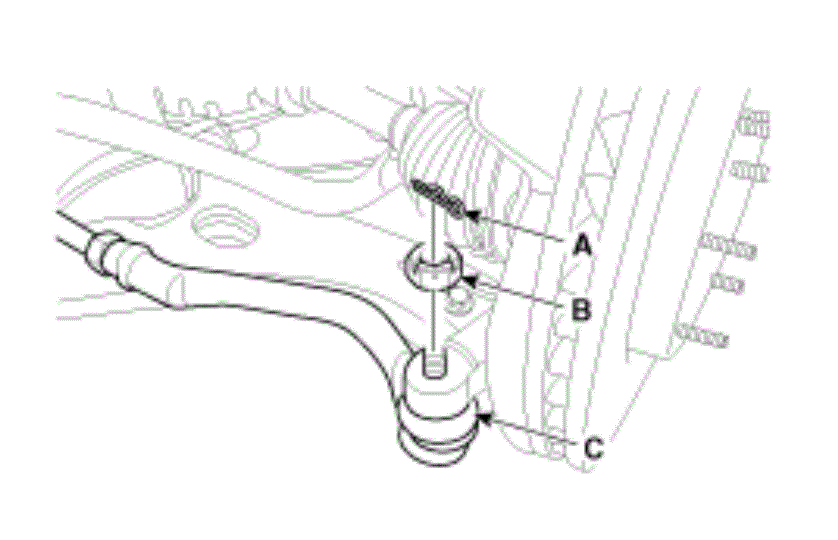

Remove the tie rod end ball joint (C) from the knuckle.
1. Remove the split pin (A).
2. Remove the castle nut (B).
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ball joint (A) from knuckle using the special tool (09568-4A000).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the lower arm (A) mounting bolt and nut from the knuckle.
Tightening torque:

98.0 ~ 117.6 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.7lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

Remove the bolt after removing the strut assembly from the knuckle.

After removing bolts from the front knuckle, install and tighten the sub body bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

Tighten bolt (B) of the sub body bolt to broaden the gap of the front knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

Install the safe wire (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Install a safe wire on the front strut to prevent dropping the SST and hurting technicians.

Install the main body, between the front strut and the lower arm.

Courtesy of KIA MOTORS AMERICA, INC.

To avoid the main body coming off, install a fixing clamp (A) beside the main body.

Courtesy of KIA MOTORS AMERICA, INC.

After installing a fixing clamp, rotate the handle (B) clock wise till the clamp is fixed on a lower arm.

Courtesy of KIA MOTORS AMERICA, INC.

Tighten a main body bolt (A) of the slowly and remove the lower arm from the front knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

Use the SST (09581-11000) when installing the brake caliper assembly.

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the inner shaft mounting bolts and then disconnect the inner shaft (A).
Tightening torque:

49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6lb-ft)

Information

The shapes of brackets and types of bolts installed are different for each engine type.

Courtesy of KIA MOTORS AMERICA, INC.
Use the pry bar to remove the left front drive shaft (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Use a pry bar so as not to damage the transaxle and joint.
- Do not insert the pry bar too deep, as this may damage the oil seal.
- Do not pull the driveshaft by excessive force as it may cause components inside the joint kit to be dislodged resulting in a torn boot or a damaged bearing.
- Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
- Support the driveshaft properly.
- Replace the retainer ring whenever the driveshaft is removed from the transaxle case.
Check the front alignment.
(Refer to Suspension System - "FRONT ALIGNMENT ")
