Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

NOTE: Take care not to bend or scratch the trim and panels.

Remove the tailgate weatherstrip.
(Refer to Tailgate - "TAILGATE WEATHERSTRIP ")

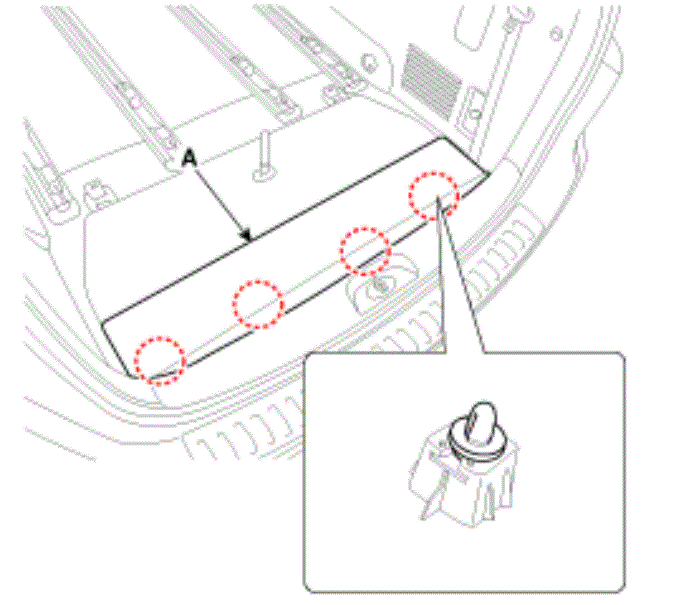

Remove the rear luggage board (A).

Courtesy of KIA MOTORS AMERICA, INC.

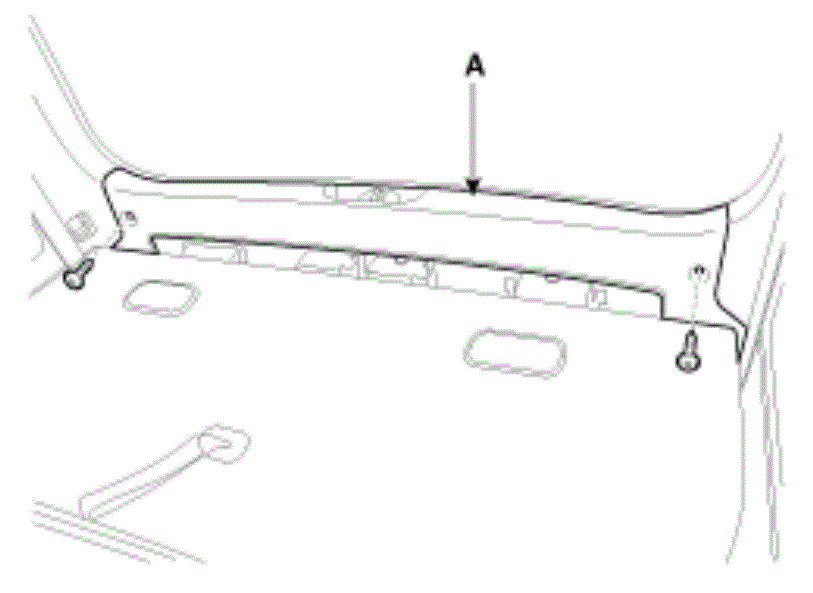

Remove the rear transverse trim (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
