Repair Procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
NOTE: Take care not to bend or scratch the trim and panels.
  1. Remove the front door body side weatherstrip.

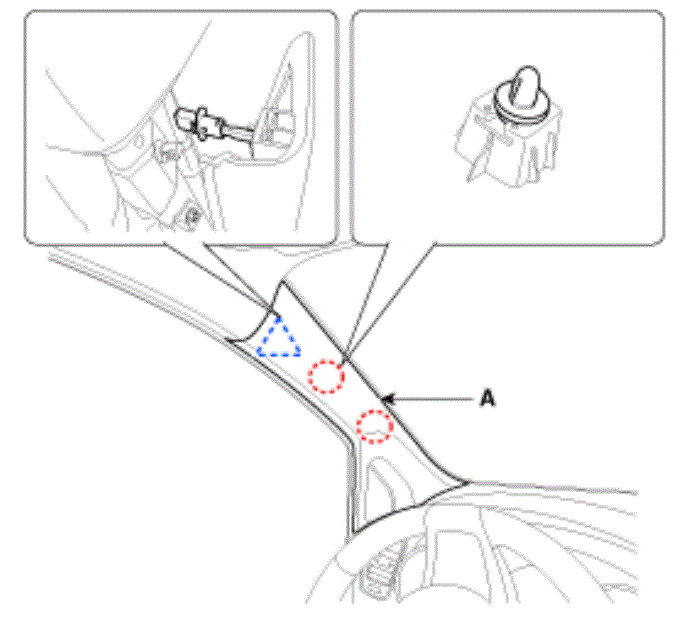

  2. Remove the front pillar trim (A) using a screwdriver or remover.
    G13046035Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.

    Information

    Replace any damaged clips.
