Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

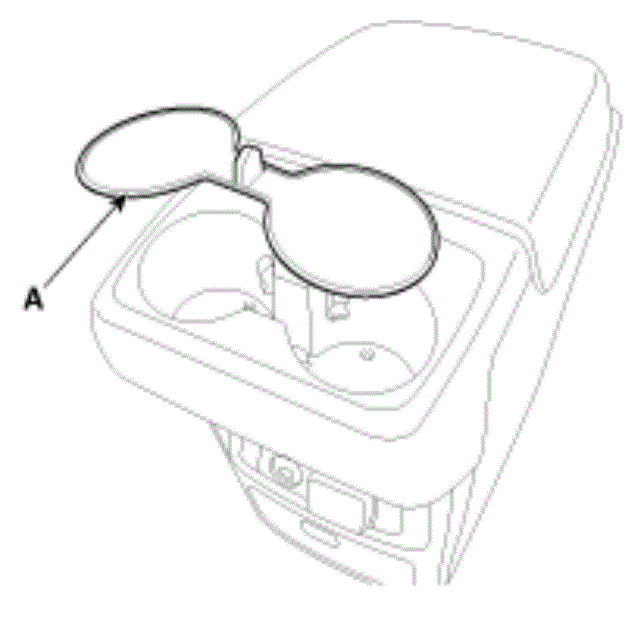

  2. Remove the rear console cup mat (A).
    G13045934Courtesy of KIA MOTORS AMERICA, INC.

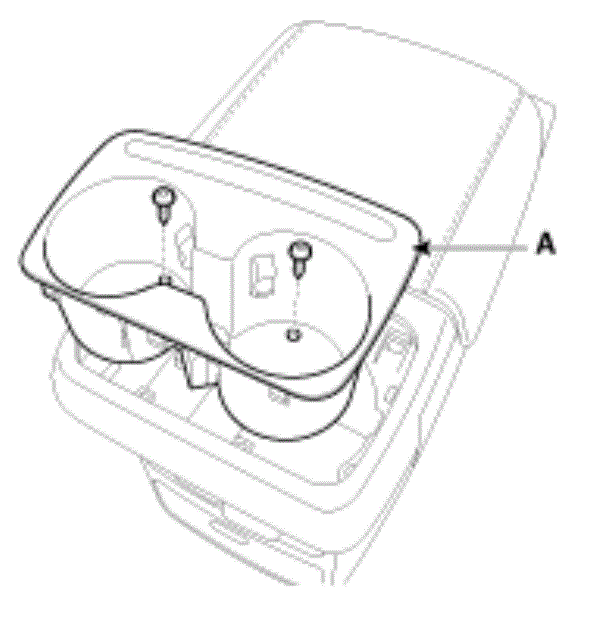

  3. Loosen the screw and remove the cup holder case (A).
    G13045935Courtesy of KIA MOTORS AMERICA, INC.

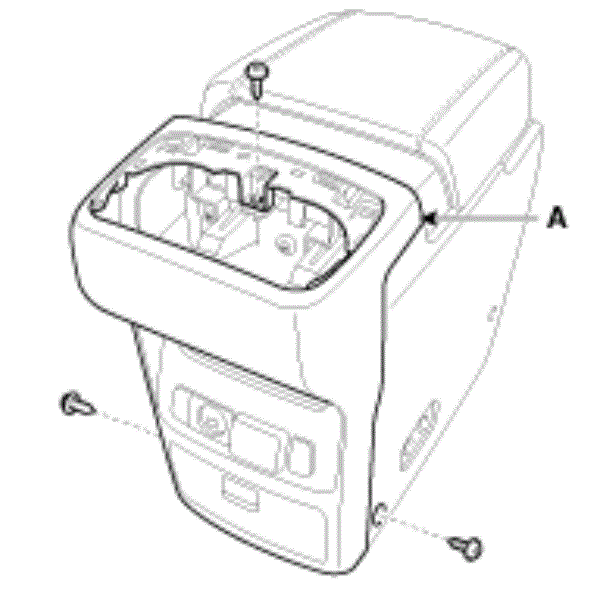

  4. Loosen the screw and remove the rear console cover (A).
    G13045936Courtesy of KIA MOTORS AMERICA, INC.

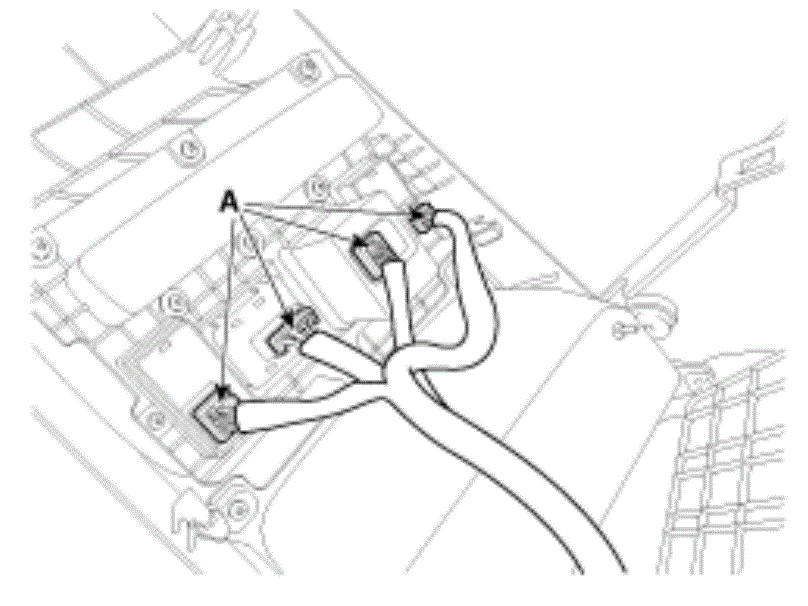

  5. Press the locking pin and disconnect the connectors (A).
    G13045937Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.

    Information

    • Make sure that the connectors are connected in properly.
    • Replace any damaged clips.
