Repair Procedures: Replacement

Information

Take care to not let the tailgate fall on you as the lifts are removed. Have a helper hold the tailgate open, or use a secure method to hold it open.

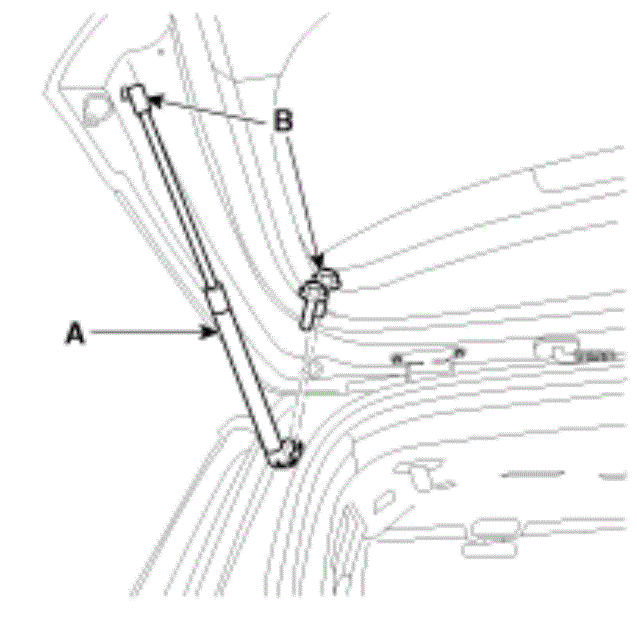

1. Remove the tail gate lifter (A) after loosening the bolts and socket clip and bolts (B).

   Tightening torque:

   6.9~10.8 N.m (0.7~1.1 kgf.m, 5.1~8.0 lb-ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

   • Power tail gate type.

     (Refer to Body Electrical System - "PTG SPINDLE ")

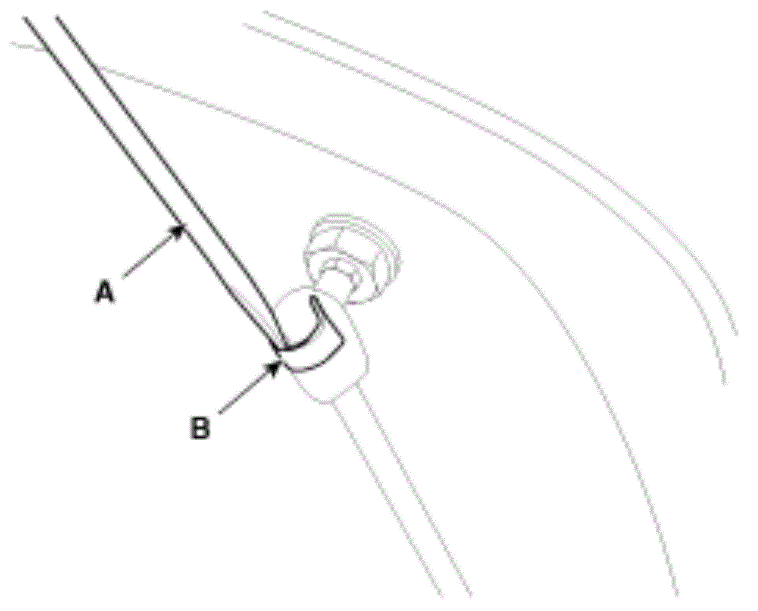

   • Using a flat head screwdriver (A), remove the clip (B).

   Courtesy of KIA MOTORS AMERICA, INC.

2. Install in the reverse order of removal.

   Information

   Make sure that the tail gate locks and opens properly and locks securely.
