Repair Procedures: Adjustment

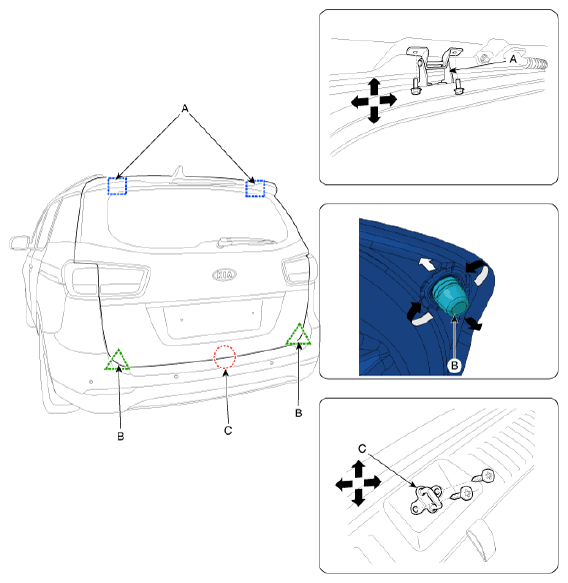

  1. After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up and down, or right and left.
  2. Adjust the tail gate height by turning the tail gate overslam bumpers (B).
  3. After loosening the tail gate striker (C) mounting bolts, adjust the tail gate striker by moving it up and down, or right and left.
G13045741Courtesy of KIA MOTORS AMERICA, INC.
