Cruise Control System
>>
Schematic Diagrams
>>

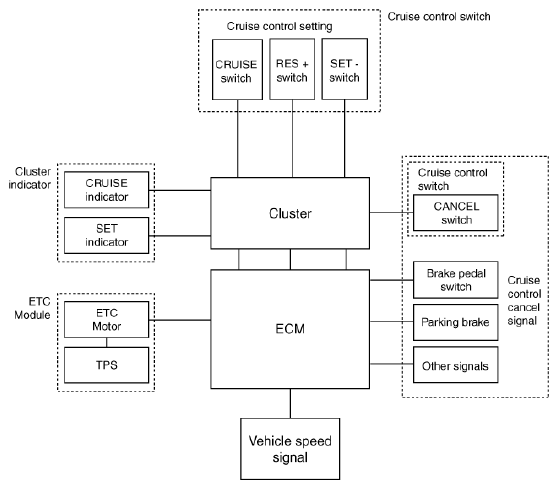

System Block Diagram
>>
Notes
System Block Diagram: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
