Home >> Kia >> 2021 >> Sedona EX >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Back View Camera >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate back panel.

    (Refer to Body - "TAIL GATE BACK PANEL ")

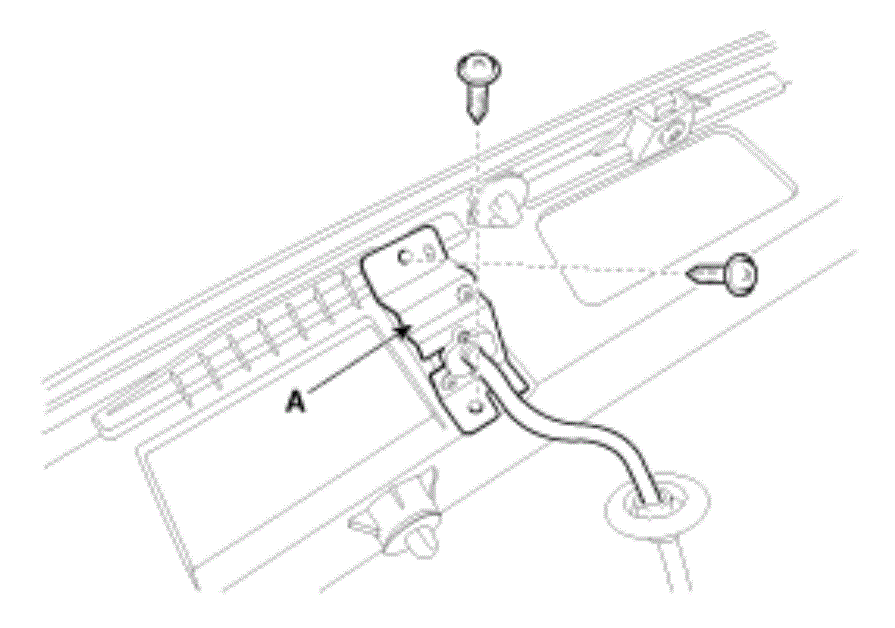

  3. Remove the back view camera (A) after loosening the screws (2 EA).
    G13046773Courtesy of KIA MOTORS AMERICA, INC.
