Removal And Installation

  1. Disconnect the battery negative cable.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX HOUSING ")

  3. Remove the smart key unit.

    (Refer to Body Electrical System - "SMART KEY UNIT ")

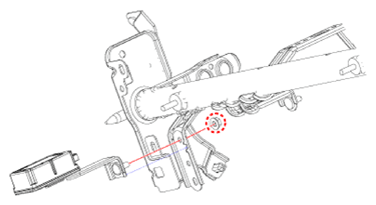

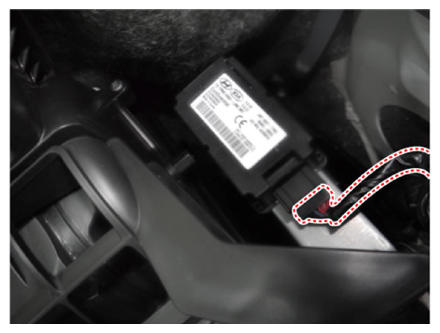

  4. Loosen the nut and disconnect the connector.
    G13705143Courtesy of KIA MOTORS AMERICA, INC.
    G13705144Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
