Monitor KDS/GDS Data

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON", engine "OFF"
  2. No occupant on the passenger seat
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor parameters in "Current Data" with KDS/GDS.

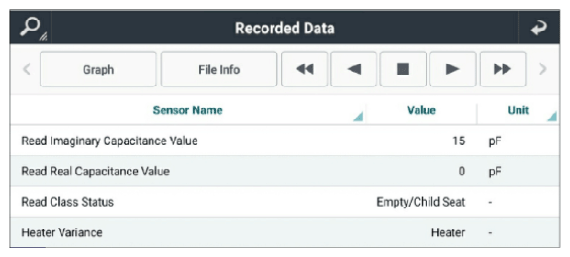

 Fig.1
  1. Ignition "ON", engine "OFF"
  2. Occupant on the passenger seat

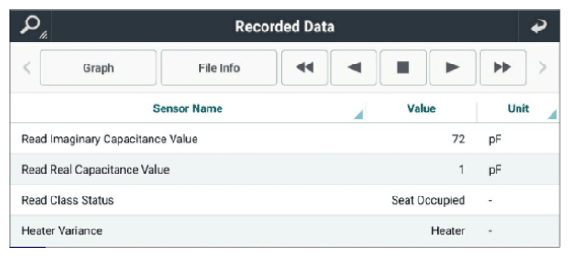

 Fig.2
G13709977Courtesy of KIA MOTORS AMERICA, INC.
G13709978Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
