Repair Procedures: Removal

  1. Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.
  2. Remove the roof trim assembly.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

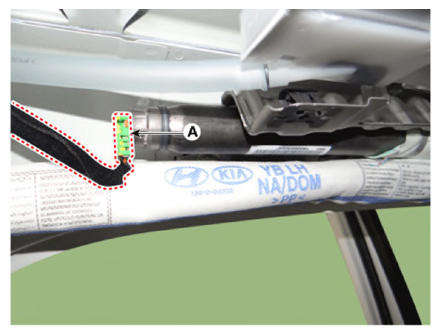

  3. Disconnect the connector (A) from the curtain airbag module.
    G13705290Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the curtain airbag bolts and nuts and then remove the curtain airbag.
    G13705291Courtesy of KIA MOTORS AMERICA, INC.
