Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

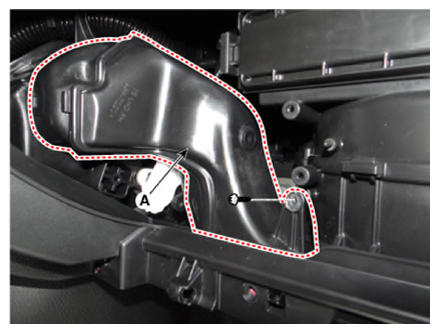

  2. Remove the driver side shower duct (A) after loosening the screw.
    G13706672Courtesy of KIA MOTORS AMERICA, INC.

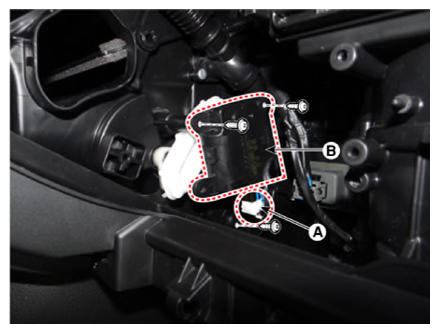

  3. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G13706673Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
