Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the BCM unit.

    (Refer to Body Electrical System - "BODY CONTROL MODULE (BCM) ")

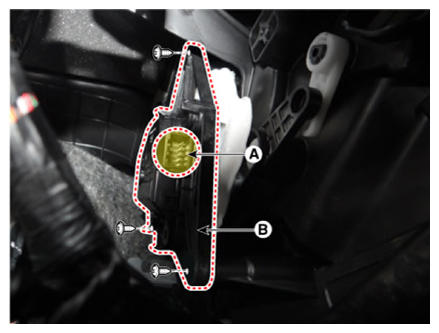

  3. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
    G13706675Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
