Repair Procedures: Removal

  1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
  2. Disconnect the negative cable from the battery.
  3. Recover the refrigerant with a recovery/charging station.
  4. Remove the front tire [RH].

    (Refer to Suspension System - "WHEEL ")

  5. Remove the front wheel guard [RH].
  6. Loosen the drive belt.

    G 1.6 GDI-GAMMA  (Refer to Engine Mechanical System - "DRIVE BELT ")

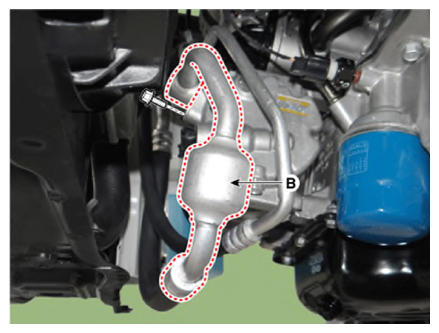

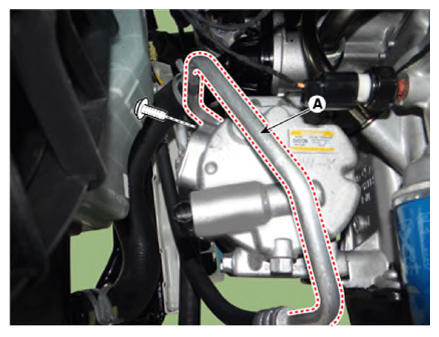

  7. Disconnect the suction line (A) and discharge line (B) from the compressor.
    G13706614Courtesy of KIA MOTORS AMERICA, INC.
    G13706615Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

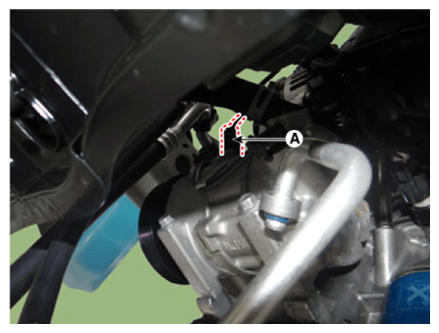

  8. Disconnect the compressor switch connector (A).
    G13706616Courtesy of KIA MOTORS AMERICA, INC.

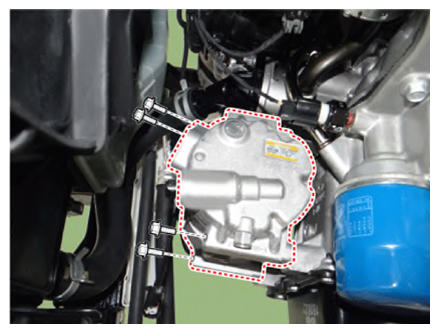

  9. Remove the compressor by loosening the mounting bolts.
    G13706617Courtesy of KIA MOTORS AMERICA, INC.
