Repair Procedures: Replacement

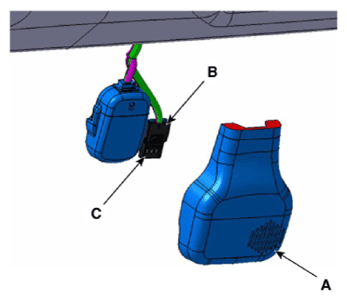

  1. Remove the auto defogging sensor cover (A).
  2. Disconnect the connector (B) and then remove the auto defogging sensor (C).
    G13706656Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse order of removal.
