Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

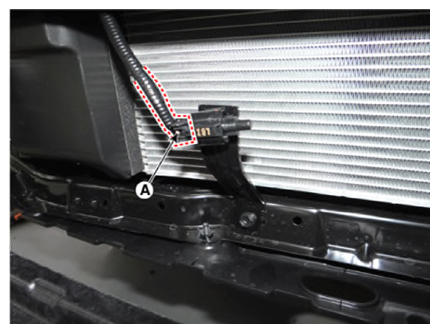

  3. Disconnect the ambient temperature sensor connector (A).
    G13706653Courtesy of KIA MOTORS AMERICA, INC.

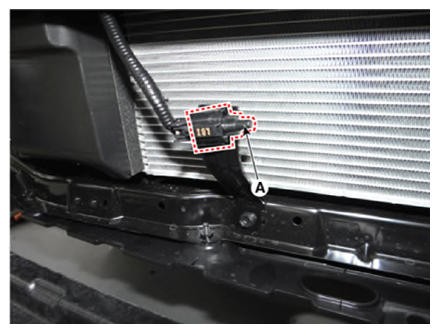

  4. Remove the ambient temperature sensor (A).
    G13706654Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
