Piston Pins

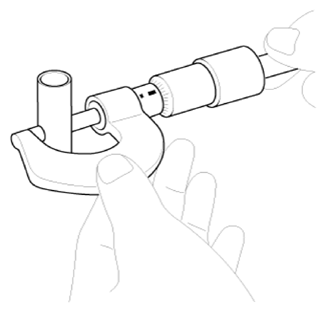

- Measure the outer diameter of piston pin
Piston pin diameter:
18.997 - 19.000 mm (0.7479 - 0.7480 in)
- Measure the piston pin-to-piston clearance.
Piston pin-to-piston clearance:
0.004 - 0.012 mm (0.0002 - 0.0005 in)
- Check the difference between the piston pin outer diameter and the connecting rod small end inner diameter.
Piston pin-to-connecting rod interference:
0.005 - 0.014 mm (0.0002 - 0.0006 in)
