Repair Procedures: Disassembly

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damaging the cylinder head, wait until the engine coolant temperature drops below normal temperature (20°C [68°F]) before removing it.
When handling a metal gasket, take care not to fold the gasket or damage the contact surface of the gasket.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Mark all wiring and hoses to avoid misconnection.
Turn the crankshaft damper pulley so that the piston of No. 1 cylinder is at TDC (top dead center) on compression stroke.

Remove the engine and transaxle assembly from the vehicle.
(Refer to Engine and Transaxle Assembly - "ENGINE AND TRANSAXLE ASSEMBLY ")
Remove the intelligent variable transmission (IVT).
(Refer to Intelligent Variable Transmission (IVT) System (Continuously Variable Transmission) - "INTELLIGENT VARIABLE TRANSMISSION (IVT) ")
Intelligent variable transmission (IVT): Remove the drive plate.
(Refer to Cylinder Block - "DRIVE PLATE ")
Remove the rear oil seal.
(Refer to Cylinder Block Assembly - "REAR OIL SEAL ")
Install the engine assembly to engine stand for disassembly.
Remove the oil pan.
(Refer to Lubrication System - "OIL PAN ")
Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")
Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")
Remove the exhaust manifold.
(Refer to Intake and Exhaust System - "EXHAUST MANIFOLD ")
Remove the electric EGR control valve.
(Refer to "REPAIR PROCEDURES ")
Remove the EGR cooler.
(Refer to Intake And Exhaust System - "EGR COOLER ")
Remove the oil filter body.
(Refer to Lubrication System - "OIL FILTER BODY ")
Remove the oil pump.
(Refer to Lubrication System - "OIL PUMP ")
Remove the cylinder head assembly.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD ")
Remove the air conditioning compressor.
(Refer to Heating, Ventilation Air conditioning - "COMPRESSOR ")

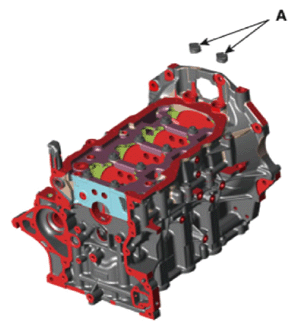

Remove the rear cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

Remove the lower crankcase.

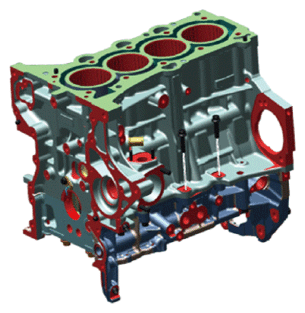

Remove the lower crankcase mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

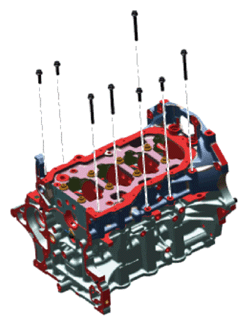

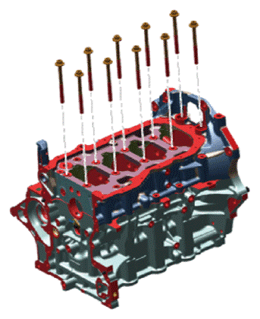

Remove the crankshaft bearing cap bolts.

Courtesy of KIA MOTORS AMERICA, INC.

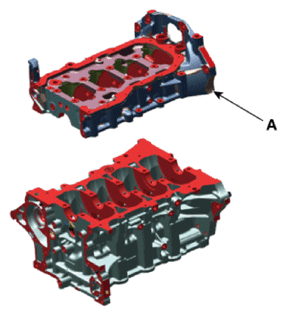

Remove the lower crankcase (A).

Courtesy of KIA MOTORS AMERICA, INC.

Remove the piston and connecting rod assemblies.
(Refer to Cylinder Block Assembly - "PISTON AND CONNECTING ROD ")
Check the bearing oil clearance.
Check the crankshaft end play.

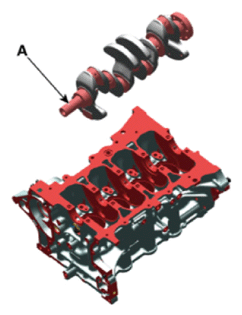

Lift the crankshaft (A) out of the cylinder block, being careful not to damage journals.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Arrange the bearings and thrust bearings in the correct order.

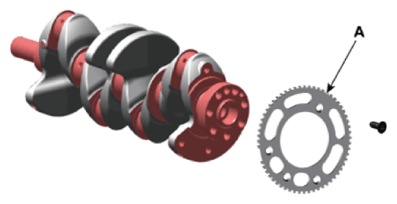

Remove the crankshaft position sensor wheel (A).
