Repair Procedures: Reassembly

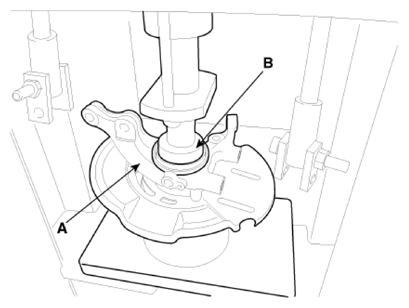

  1. Install the hub bearing to the knuckle assembly.
    1. Fix the knuckle assembly (A) on a press.
    2. Mount a new hub bearing on the knuckle assembly (A).
    3. Mount the suitable adapter (B) on the hub bearing.
    4. Operate the press to install the hub bearing to the knuckle assembly.
      G13704915Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:
      • Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.
      • Always use a new wheel bearing assembly.

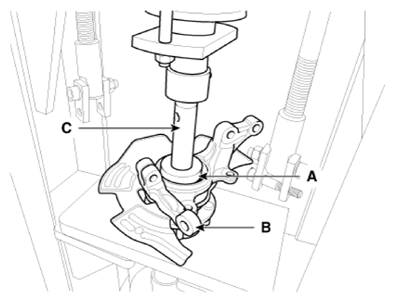

  2. Install the hub assembly to the knuckle assembly.
    1. Fix the hub assembly (A) on the suitable adapter.
    2. Mount the knuckle assembly (B) on the hub assembly (A).
    3. Mount the suitable adapter (C) on the hub bearing.
    4. Operate the press to install the hub assembly (A) to the knuckle assembly (B).
      G13704916Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION: Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.

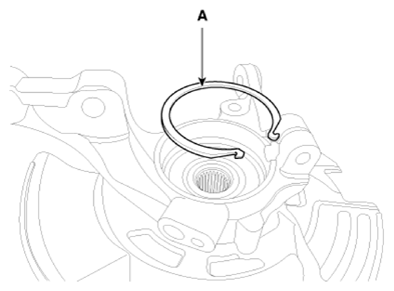

  3. Install the snap ring (A).
    G13704917Courtesy of HYUNDAI MOTOR AMERICA
