Repair Procedures: Disassembly

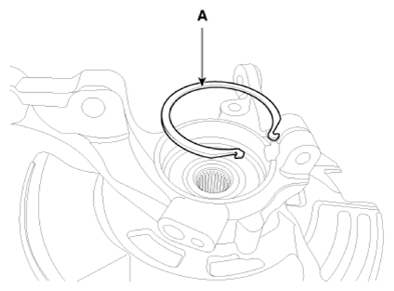

  1. Remove the snap ring (A).
    G13704911Courtesy of HYUNDAI MOTOR AMERICA

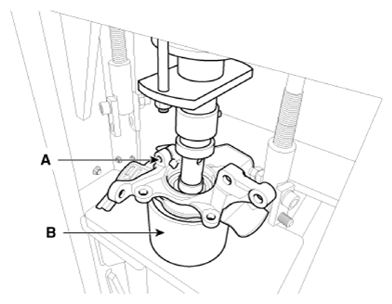

  2. Remove the hub assembly from the knuckle assembly.
    1. Install the front knuckle assembly (A) on press.
    2. Lay a suitable adapter (B) upon the hub assembly shaft.
    G13704912Courtesy of HYUNDAI MOTOR AMERICA

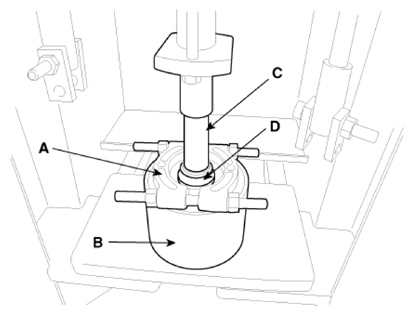

  3. Remove the hub bearing inner race from the hub assembly.
    1. Install the hub bearing inner race removal tool (A) on the hub assembly.
    2. Fix the hub assembly and the removal tool (A) on the suitable adapter (B).
    3. Mount the suitable adapter (C) on the hub assembly shaft.
    4. Operate the press to remove hub bearing inner race (D) from the hub assembly.
    G13704913Courtesy of HYUNDAI MOTOR AMERICA

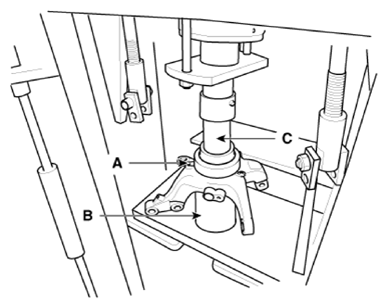

  4. Remove the hub bearing outer race from the knuckle assembly.
    1. Fix the knuckle assembly (A) on the suitable adapter (B).
    2. Mount the suitable adapter (C) on the hub bearing outer race.
    3. Operate the press to remove hub bearing outer race from the knuckle assembly.
    G13704914Courtesy of HYUNDAI MOTOR AMERICA
  5. Replace hub bearing with a new one.
