Repair Procedures: Removal

  1. Remove the front driveshaft.

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft and axle - "TJ JOINT ")

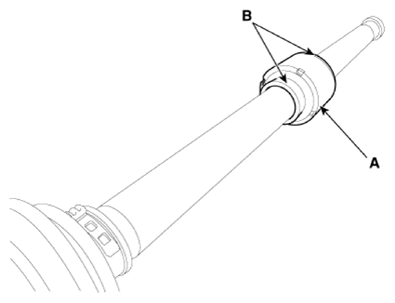

  3. Remove the remove the both side of band (B) of the dynamic damper (A).
    G13704952Courtesy of KIA MOTORS AMERICA, INC.

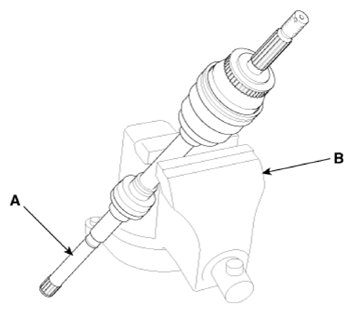

  4. Fix the driveshaft (A) with a vice (B) as illustrated.
    G13704953Courtesy of KIA MOTORS AMERICA, INC.
  5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.

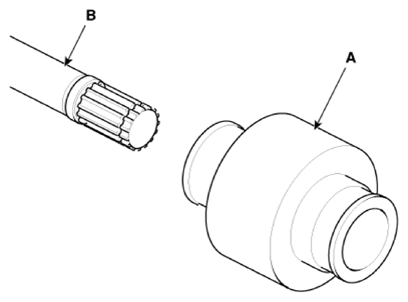

  6. Separate the dynamic damper (A) from the shaft (B) carefully.
    G13704954Courtesy of KIA MOTORS AMERICA, INC.
