Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

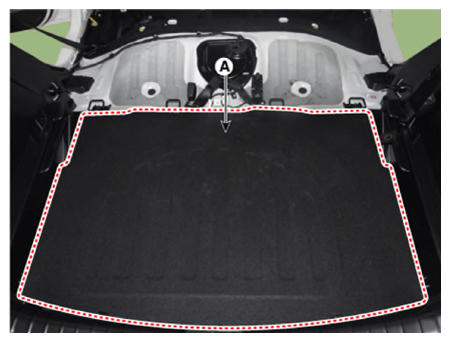

Remove the luggage covering (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the tailgate weatherstrip.

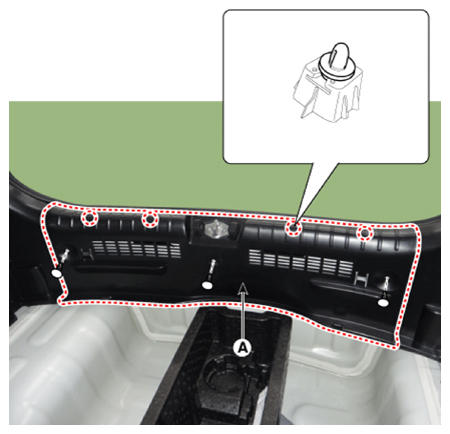

Remove the rear transverse trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
