Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

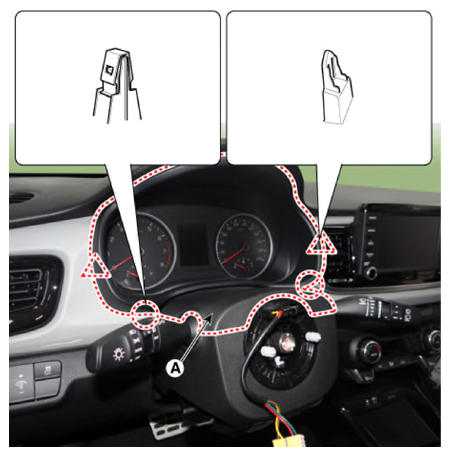

1. Remove the cluster fascia panel (A) by using a remover.

   Courtesy of KIA MOTORS AMERICA, INC.

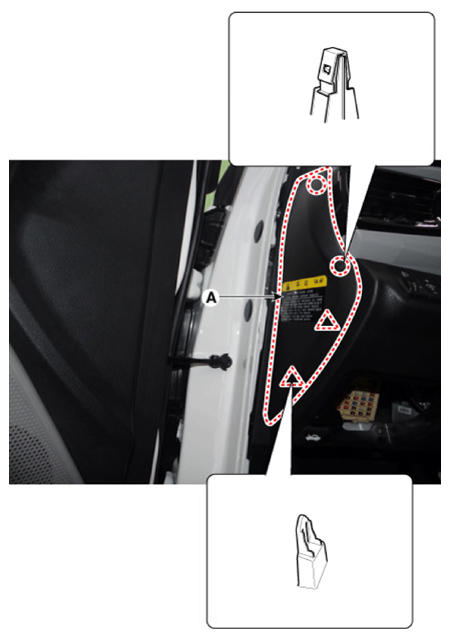

2. Remove the crash pad side cover [LH] (A) by using a remover.

   Courtesy of KIA MOTORS AMERICA, INC.

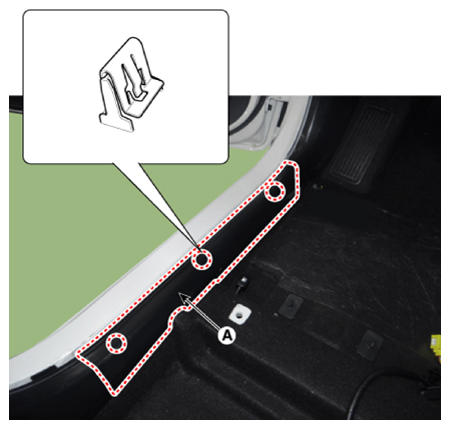

3. Remove the front door scuff trim (A) by using a remover.

   Courtesy of KIA MOTORS AMERICA, INC.

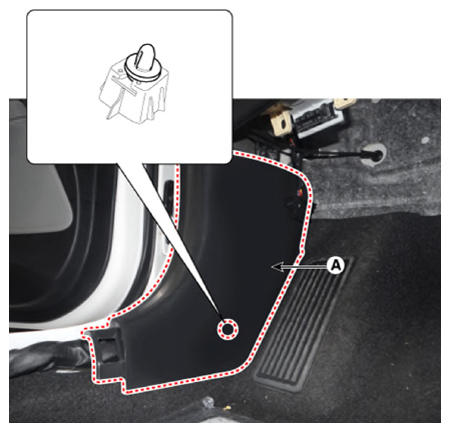

4. Remove the cowl side trim (A) by using a remover.

   Courtesy of KIA MOTORS AMERICA, INC.

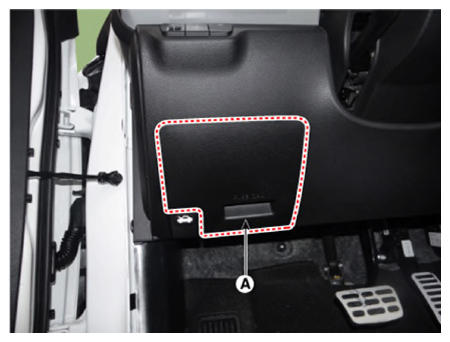

5. Remove the passenger compartment junction box cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

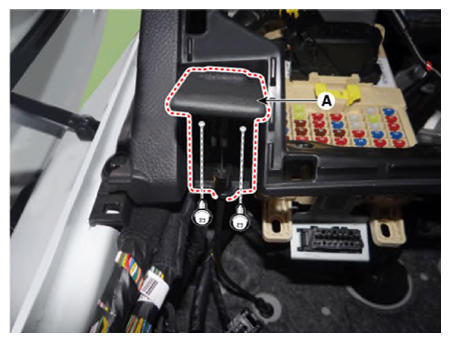

6. Separate the hood latch release handle cable (A) after loosening the mounting screws.

   Courtesy of KIA MOTORS AMERICA, INC.

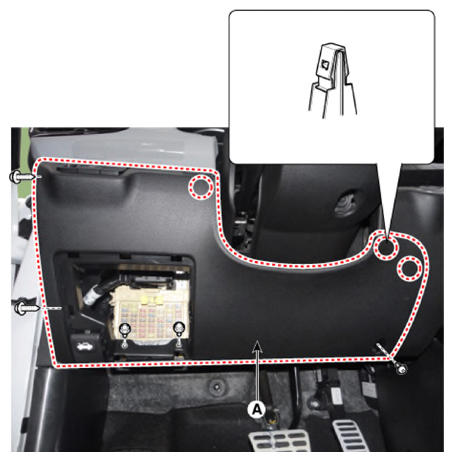

7. Separate the crash pad lower panel (A) after loosening the bolts and screws.

   Courtesy of KIA MOTORS AMERICA, INC.

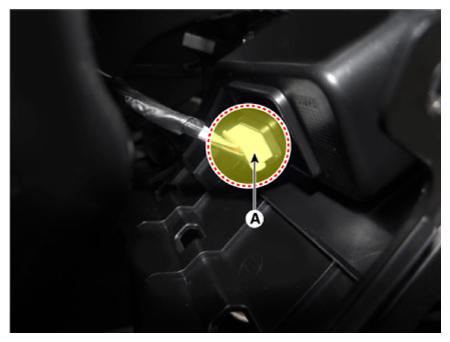

8. Disconnect the crash pad lower side switch connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Install in the reverse order of removal.

   Information

   • Make sure the connector is connected properly.
   • Replace any damaged clips.
