Repair Procedures: Removal

CAUTION:

The dust or foreign substance on the rain sensor has a bad effect upon the rain sensor capability, so protect the sensor surface with protection cover until installing the rain sensor to bracket for accurate function.
As the coupling pad on the rain sensor surface has adhesive strength, it may stick to the windshield based on environmental condition.
Carefully separate the rain sensor from the windshield as it may be damaged if separated by force.

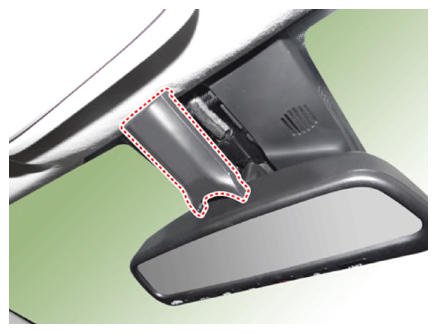

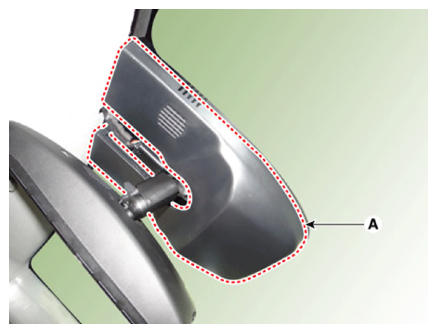

Remove the mirror wiring cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

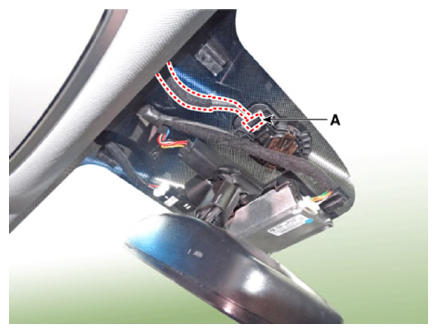

Disconnect the rain sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

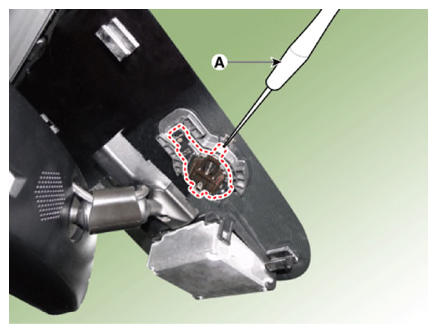

Be careful not to damage the cover latch by applying excessive force. To remove the latch, pull aside the latch using the cover hole with a small flat-blade screwdriver (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

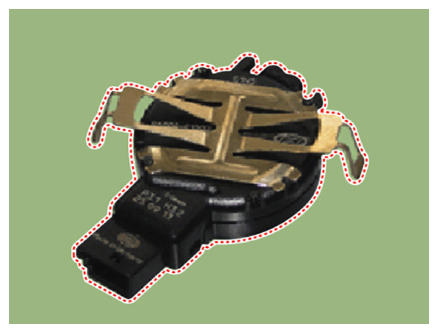

Rain sensor module is attached to the front windshield by glue. To replace the front windshield, remove the rain sensor module from the existing front windshield and install on the new front windshield.
