Repair Procedures: Installation

NOTE:

For windshield with reflection layer that reflects infrared rays in sensing field, install the rain sensor in the field with the reflection layer removed.
Install the rain sensor after some time and avoid settling of dust after installation.

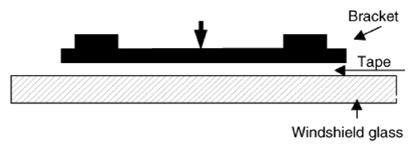

Install the rain sensor bracket to the windshield glass using the tape.

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: It is very important that the coupling pad is pressing against the windshield completely without bubbles for full adherence.
Connect the rain sensor connector, and then install the sensor cover.
