Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

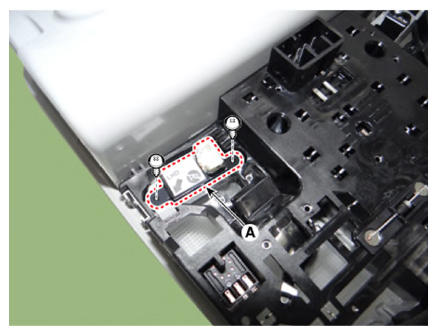

  3. Remove the hands free mic (A) after loosening the mounting screws.
    G13706091Courtesy of KIA MOTORS AMERICA, INC.

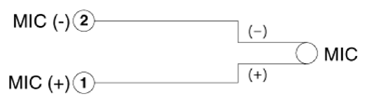

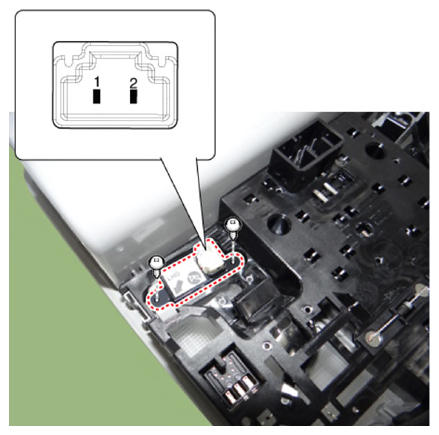

  4. Check the continuity of between terminals.
    G13706092Courtesy of KIA MOTORS AMERICA, INC.
    G13706093Courtesy of KIA MOTORS AMERICA, INC.
