Repair Procedures: Removal
CAUTION:
- Be careful not to scratch the center fascia upper panel and related parts.
- Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
- Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.
- Disconnect the negative (-) battery terminal.
- Remove the center fascia duct assembly.
(Refer to Body - "CENTER FASCIA PANEL ")

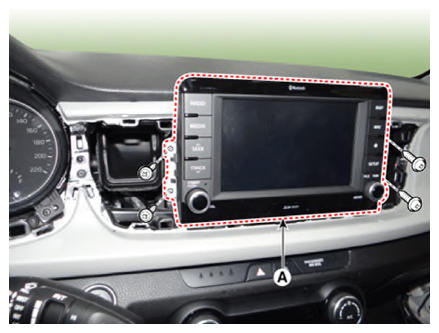

- Remove the Audio head unit (A) after loosening the mounting screws.

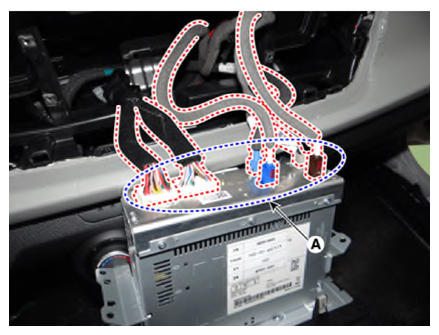

- Remove the Audio head unit after disconnecting the connectors and antenna cable (A).
