Vehicle S/W Management

CAUTION: * Perform the "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once AEB ECU is replaced.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 8
G13709805Courtesy of KIA MOTORS AMERICA, INC.

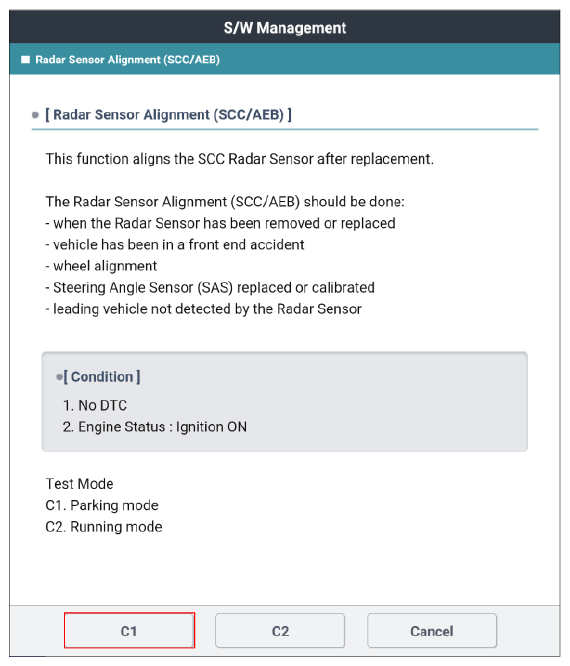

G13709806Courtesy of KIA MOTORS AMERICA, INC.

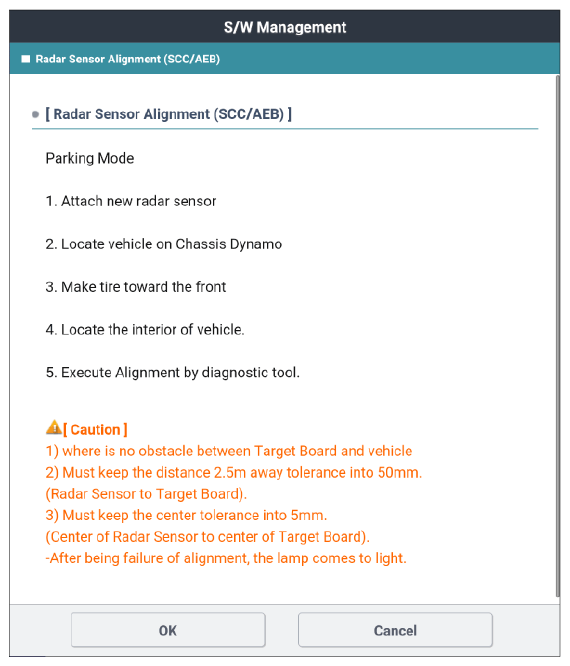

G13709807Courtesy of KIA MOTORS AMERICA, INC.

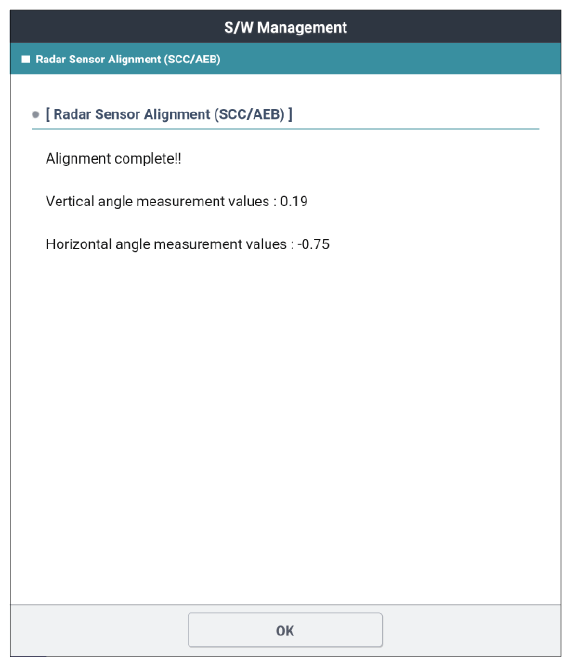

G13709808Courtesy of KIA MOTORS AMERICA, INC.

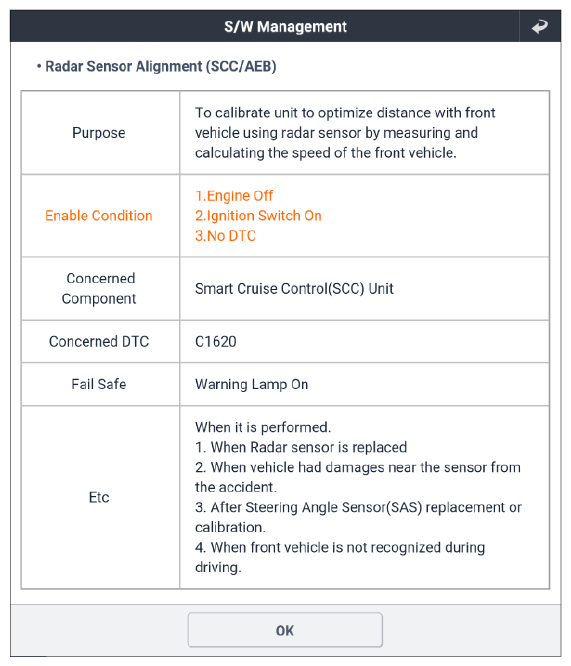

G13709809Courtesy of KIA MOTORS AMERICA, INC.

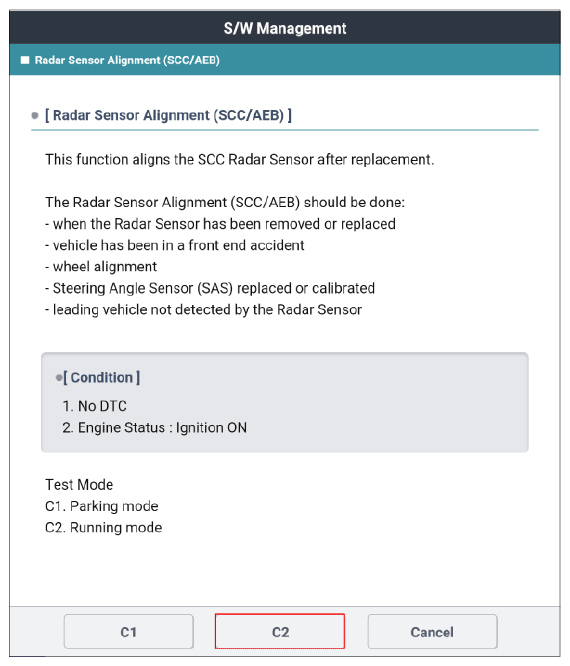

G13709810Courtesy of KIA MOTORS AMERICA, INC.

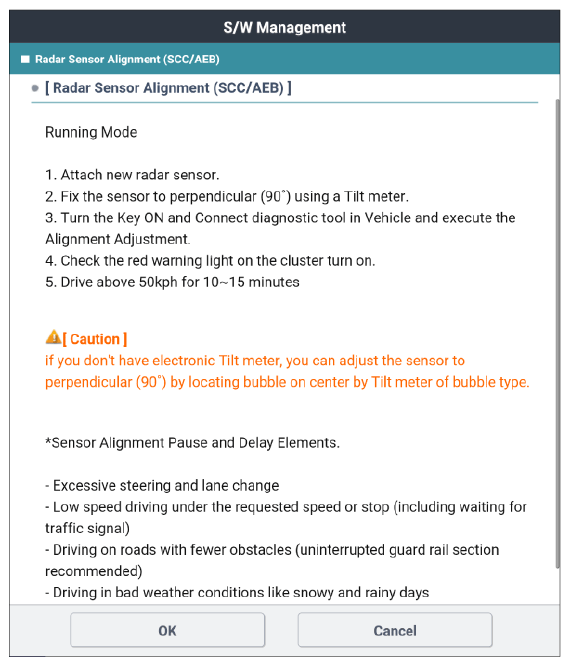

G13709811Courtesy of KIA MOTORS AMERICA, INC.

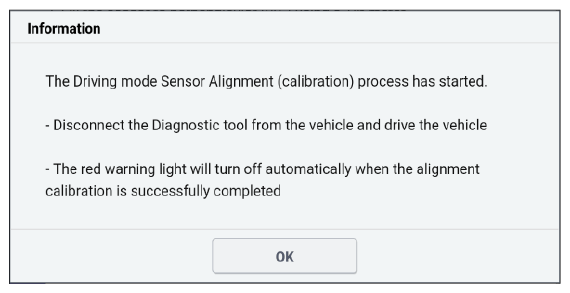

G13709812Courtesy of KIA MOTORS AMERICA, INC.
