Front Door Lock Module Inspection

Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
Remove the front door trim seal.
(Refer to Body - "FRONT DOOR WINDOW GLASS ")

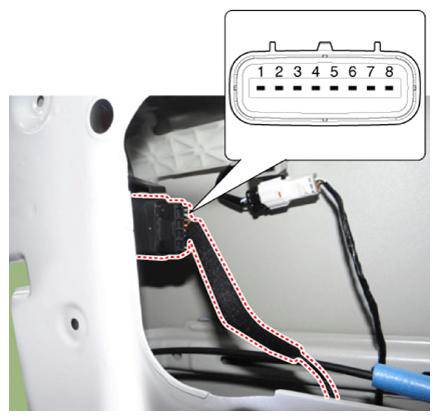

Disconnect the connector from the actuator.

G13706266

Courtesy of KIA MOTORS AMERICA, INC.

[Central Lock Motor]

No.	Pin Information
No.	LH	RH
1	-	-
2	Motor 2	COM
3	Motor 3	Lock/Unlock switch
4	Key unlock switch	Key lock switch
5	Key lock switch	Key unlock switch
6	Lock/Unlock switch	Motor 3
7	COM	Motor 2
8	-	-

[Dead Lock Motor]

No.	Pin Information
No.	LH	RH
1	Motor 1	-
2	Motor 2	COM
3	Motor 3	Lock/Unlock switch
4	Key unlock switch	Key lock switch
5	Key lock switch	Key unlock switch
6	Lock/Unlock switch	Motor 3
7	COM	Motor 2
8	-	Motor 1

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
[Central Lock Motor]

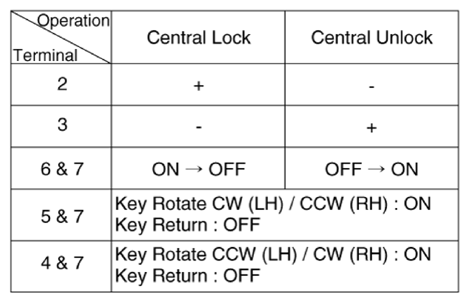

Courtesy of KIA MOTORS AMERICA, INC.

[Dead Lock Motor]

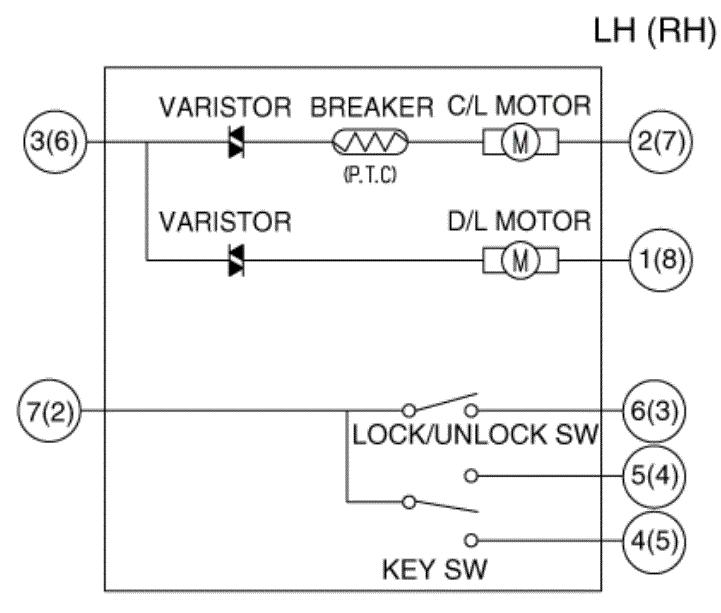

Courtesy of KIA MOTORS AMERICA, INC.

[Central Lock Motor]

(LH)

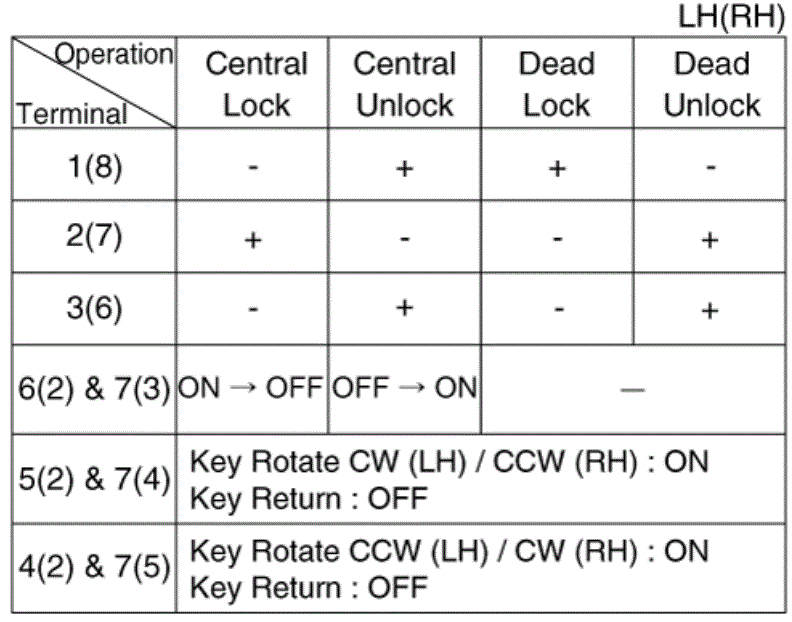

Courtesy of KIA MOTORS AMERICA, INC.

(RH)

Courtesy of KIA MOTORS AMERICA, INC.

[Dead Lock Motor]

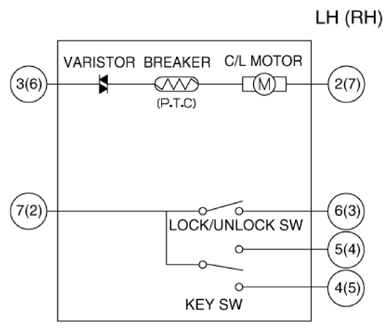

Courtesy of KIA MOTORS AMERICA, INC.
