Repair Procedures: Removal

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Drain the coolant.

    (Refer to Engine Mechanical System - "COOLANT ")

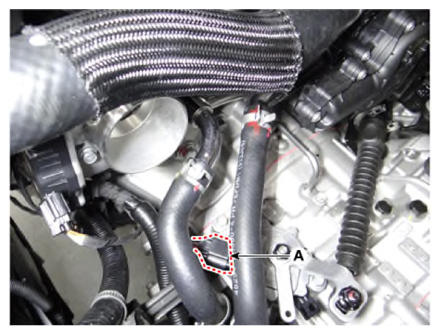

  4. Disconnect the position switch connector (A)
    G13704848Courtesy of KIA MOTORS AMERICA, INC.

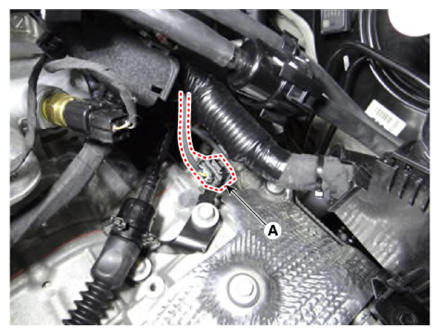

  5. Disconnect the driven pulley speed sensor connector (A).
    G13704849Courtesy of KIA MOTORS AMERICA, INC.

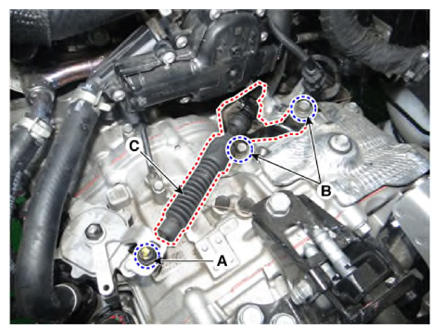

  6. Remove the shift cable (C) after loosening the bolts (B) and nut (A).

    Tightening torque:

    (A): 9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

    (B): 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb.ft)

    G13704850Courtesy of KIA MOTORS AMERICA, INC.

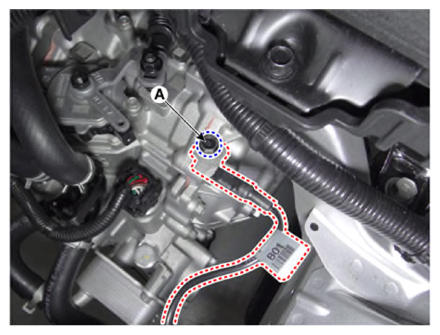

  7. Remove the ground line after removing the bolt (A).

    Tightening torque:

    26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

    G13704851Courtesy of KIA MOTORS AMERICA, INC.

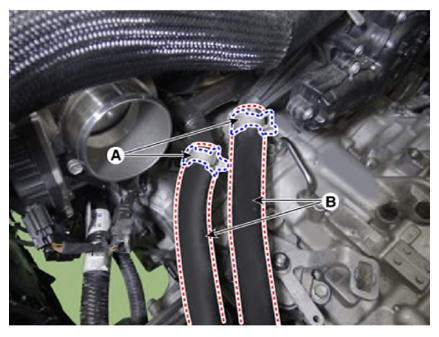

  8. Disconnect the hose (B) after removing the IVTF cooler hose clamp (A).
    G13704852Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Carefully install the clamp not to damage the hose.
    • Install the clamp in a correct direction not to be interfered with other parts.
    • Start the engine and then check if there are any leakages from the hose after installing it.

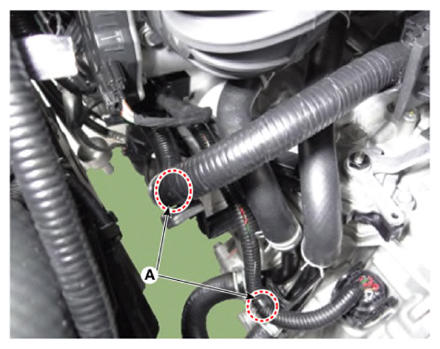

  9. Remove fixing clips (A) of the wiring.
    G13704853Courtesy of KIA MOTORS AMERICA, INC.

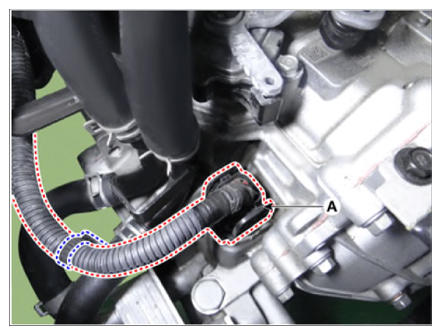

  10. Disconnect the main connector (A) and electric oil pump connector (B).
    G13704854Courtesy of KIA MOTORS AMERICA, INC.

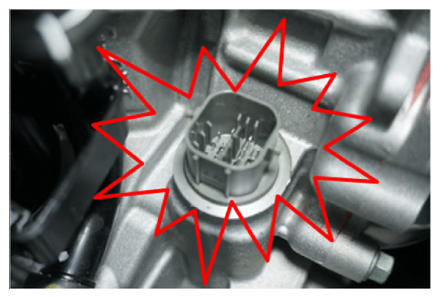

    NOTE:
    • If the main connector is exposed to coolant, disconnect the connector after blowing off the coolant completely using the air gun.
    • After detaching the main connector, wrap a plastic bag around the connector to prevent coolant from getting into it.
    • If coolant gets into the connector, corrosion may occur inside the connector, thus causing an open/short circuit. In this case, trouble codes and shift failure may also occur.
      G13704855Courtesy of KIA MOTORS AMERICA, INC.

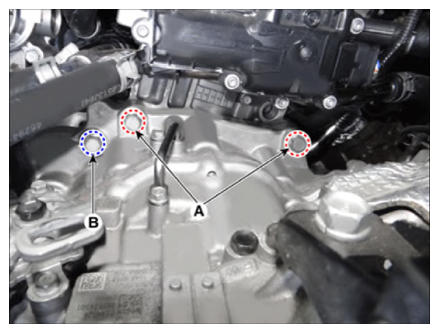

  11. Remove the transmission upper mounting bolts (A) and the starter mounting bolt (B).

    Tightening torque:

    (A): 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

    (B): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G13704856Courtesy of KIA MOTORS AMERICA, INC.
  12. Install the engine support fixture on the engine room.

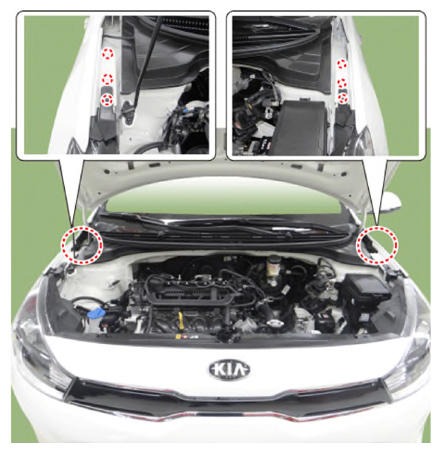

    1. Loosen the bolts (6-pcs).
      G13704857Courtesy of KIA MOTORS AMERICA, INC.

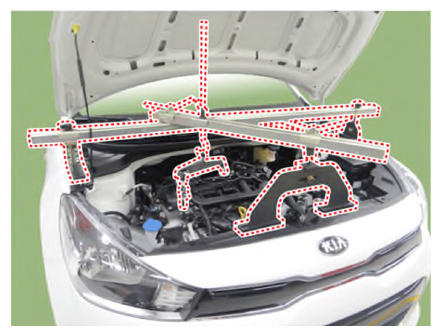

    2. Assemble the engine support fixture on the engine room.

      (Refer to Special Service Tools - "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

      G13704858Courtesy of KIA MOTORS AMERICA, INC.

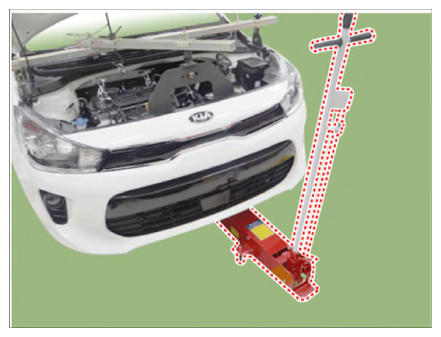

  13. Support the transmission safely on a jack.
    G13704859Courtesy of KIA MOTORS AMERICA, INC.

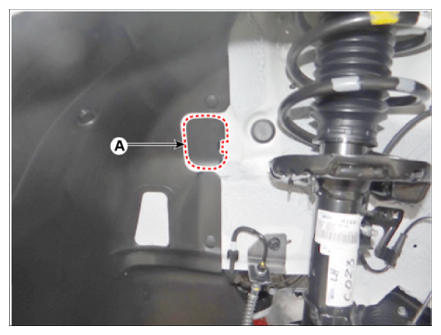

  14. Remove the cover (A).
    G13704860Courtesy of KIA MOTORS AMERICA, INC.

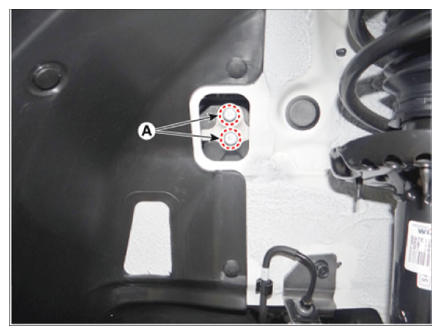

  15. Remove the IVT support bracket mounting bolts (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G13704861Courtesy of KIA MOTORS AMERICA, INC.

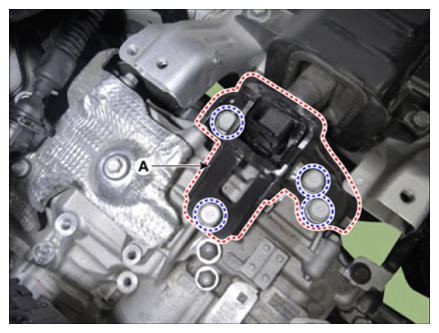

  16. Remove the IVT support bracket (A).

    Tightening torque:

    58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

    G13704862Courtesy of KIA MOTORS AMERICA, INC.
  17. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  18. Remove the drive shaft assembly.

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

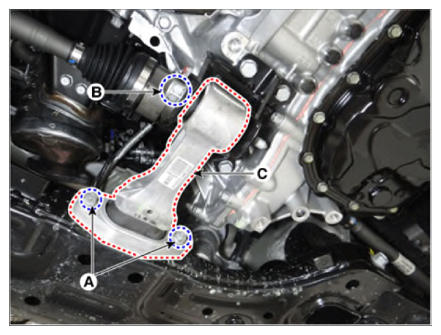

  19. Remove the roll rod bracket (C) after loosening the bolts (A, B).

    Tightening torque:

    (A) 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    (B) 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

    G13704863Courtesy of KIA MOTORS AMERICA, INC.

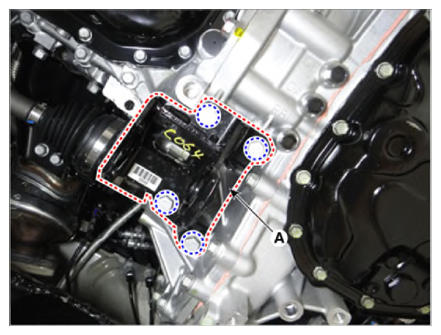

  20. Remove the roll rod support bracket (A).

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

    G13704864Courtesy of KIA MOTORS AMERICA, INC.

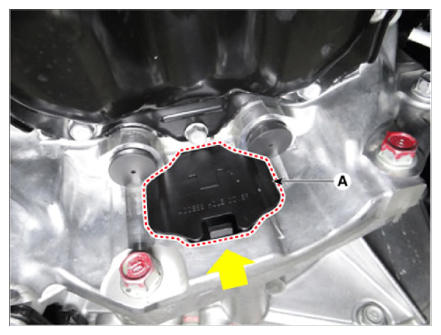

  21. Remove the cover (A).
    G13704865Courtesy of KIA MOTORS AMERICA, INC.

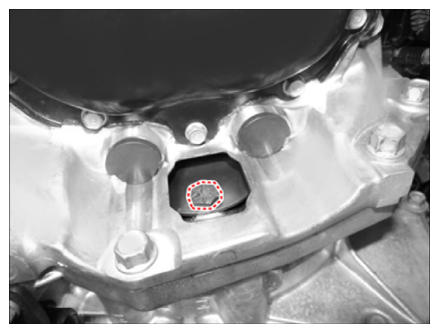

  22. Remove the torque converter mounting bolts (A) by rotating the crankshaft.

    Tightening torque:

    45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb.ft)

    G13704866Courtesy of KIA MOTORS AMERICA, INC.

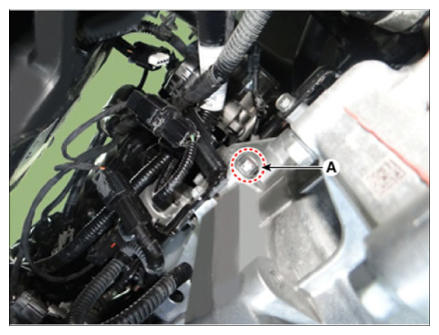

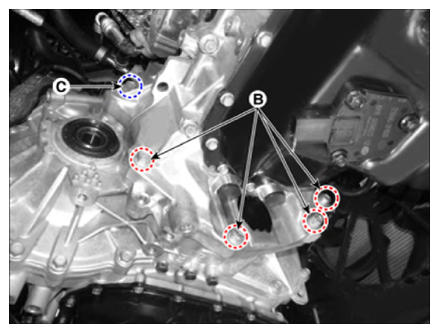

  23. Remove the starter mounting bolt (A) and transmission lower mounting bolts (B, C).

    Tightening torque:

    (A): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    (B): 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)

    (C): 42.2-53.9 N.m (4.3-5.5 kgf.m, 31.1 - 39.8 lb.ft)

    G13704867Courtesy of KIA MOTORS AMERICA, INC.
    G13704868Courtesy of KIA MOTORS AMERICA, INC.
  24. After separating the transmission from the engine, remove the transmission by lowering the jack slowly.
    NOTE: Be careful not to damage other nearby systems or parts when removing the transmission assembly.
