Tire Rotation

Checking For Pull And Wander

If the steering pulls to one side, rotate the tires according to the following wheel rotation procedure.

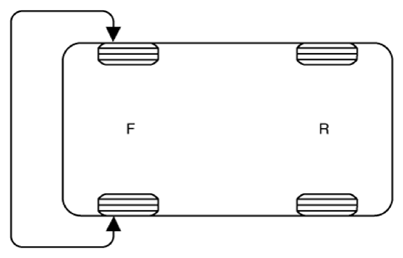

  1. Rotate the front right and front left tires, and perform a road test in order to confirm vehicle stability.
    G13705091Courtesy of HYUNDAI MOTOR AMERICA

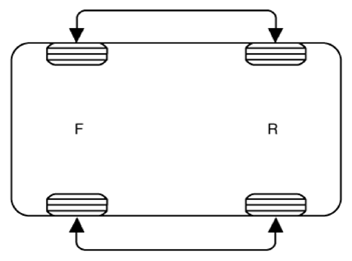

  2. If the steering pulls to the opposite side, rotate the front and rear tires, and perform a road test again.
    G13705092Courtesy of HYUNDAI MOTOR AMERICA

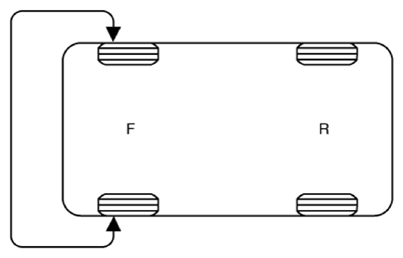

  3. If the steering continues to pull to one side, rotate the front right and left tires again, and perform a road test.
    G13705093Courtesy of HYUNDAI MOTOR AMERICA

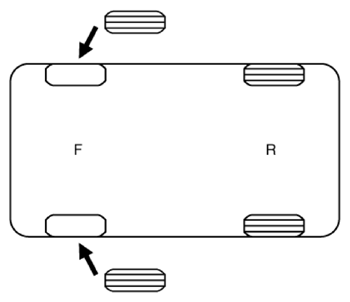

  4. If the steering continues to pull to the opposite side, replace the front wheels with new ones.
    G13705094Courtesy of HYUNDAI MOTOR AMERICA
