Repair Procedures: Replacement
- Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")

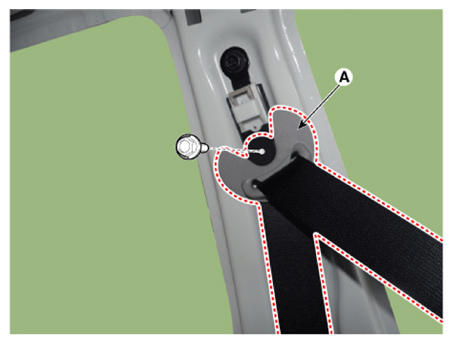

- Remove the front seat belt upper anchor (A) after loosening the mounting bolt.
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

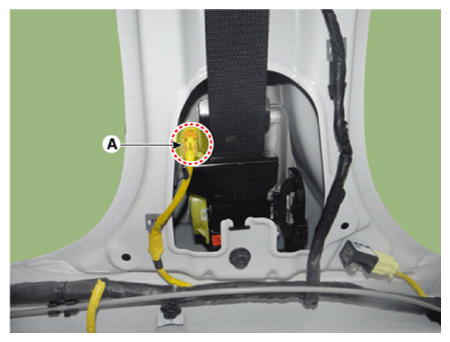

- Disconnect the front seat belt retractor connector (A).

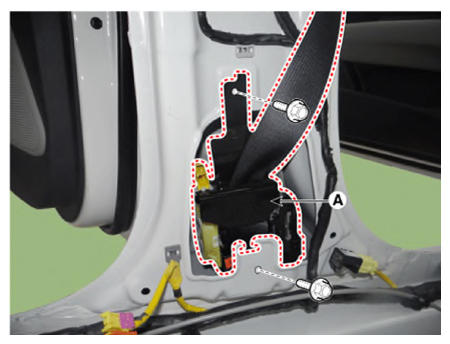

- Remove the front seat belt retractor (A) after loosening the mounting bolts.
Tightening torque
Upper: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
Lower: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)
- Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
- Replace any damaged clips.
