Repair Procedures: Replacement
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

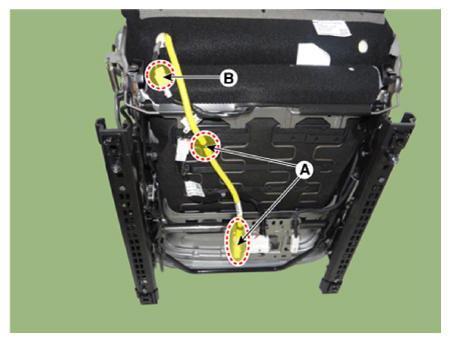

- Disconnect the front seat belt buckle connector wiring (A).

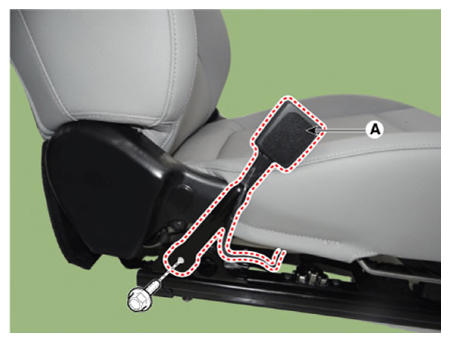

- Remove the front seat belt buckle (A) loosening the mounting bolt.
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)
- Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
- Replace any damaged clips.
