Circuit Inspection

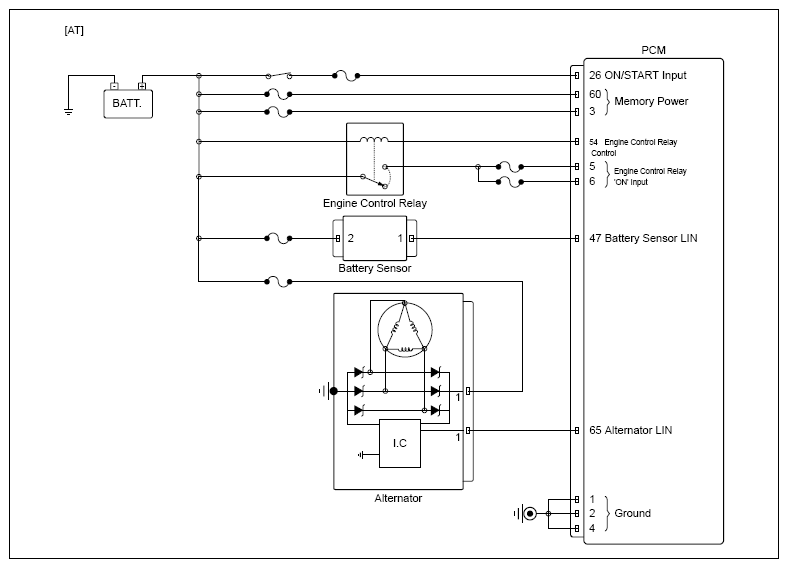

G13117150

Courtesy of KIA MOTORS AMERICA, INC.

G13117151

Courtesy of KIA MOTORS AMERICA, INC.

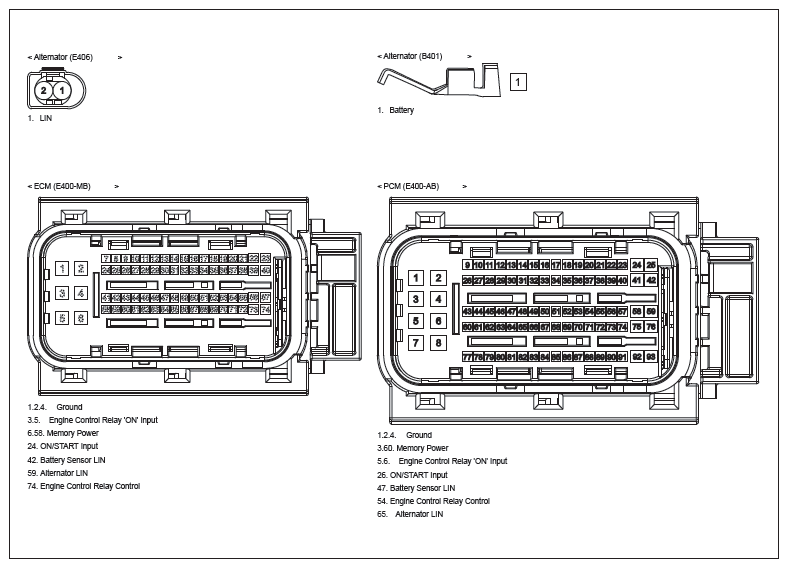

G13117152

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component. Ignition "ON".	Battery sensor connector	2 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component.	Battery sensor connector	1 (LIN)	PCM connector (A/T)	47 (battery sensor)	Approx. below 1Ω
	Battery sensor connector	1 (LIN)	ECM connector (M/T)	42 (battery sensor)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
