Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

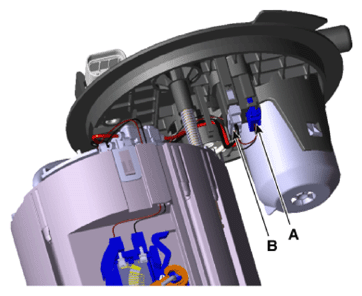

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G13704752Courtesy of KIA MOTORS AMERICA, INC.

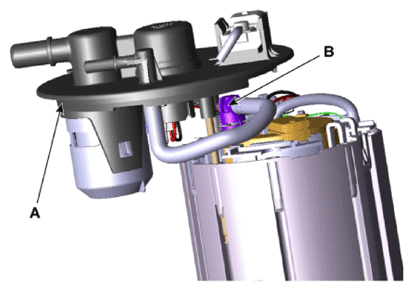

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G13704753Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G13704754Courtesy of KIA MOTORS AMERICA, INC.

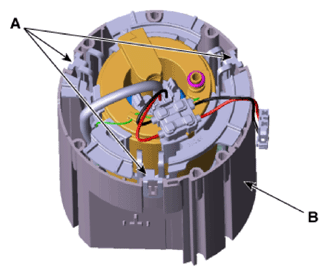

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G13704755Courtesy of KIA MOTORS AMERICA, INC.

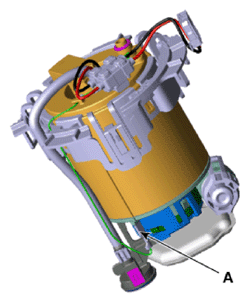

  7. Disconnect the ground (A).
    G13704756Courtesy of KIA MOTORS AMERICA, INC.

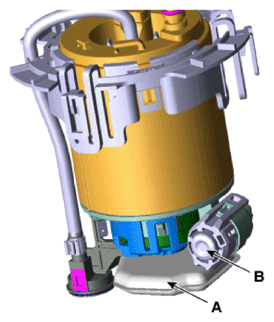

  8. Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).
    G13704757Courtesy of KIA MOTORS AMERICA, INC.

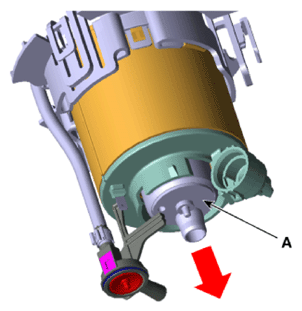

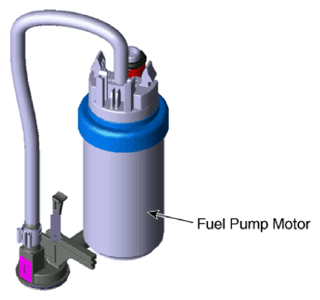

  9. Remove the fuel pump motor (A) in the direction of an arrow.
    G13704758Courtesy of KIA MOTORS AMERICA, INC.
    G13704759Courtesy of KIA MOTORS AMERICA, INC.
