Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

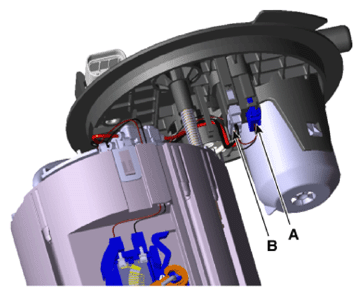

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G13704763Courtesy of KIA MOTORS AMERICA, INC.

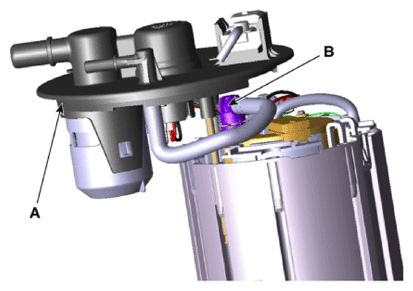

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G13704764Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G13704765Courtesy of KIA MOTORS AMERICA, INC.

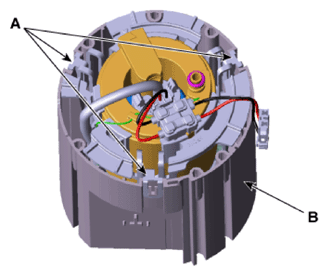

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G13704766Courtesy of KIA MOTORS AMERICA, INC.

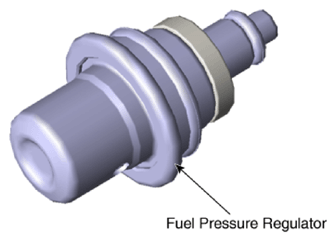

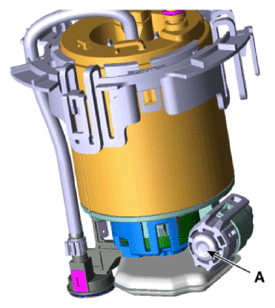

  7. Release the fixing hooks, and then remove the fuel pressure regulator (A).
    G13704767Courtesy of KIA MOTORS AMERICA, INC.
    G13704768Courtesy of KIA MOTORS AMERICA, INC.
