Repair Procedures: Replacement

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

  3. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

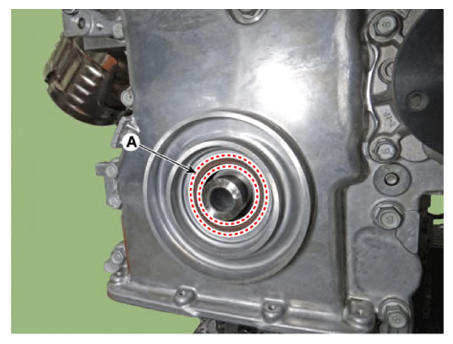

  4. Remove the front oil seal (A).
    G13704394Courtesy of KIA MOTORS AMERICA, INC.

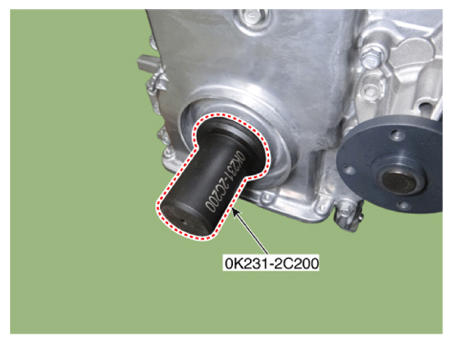

  5. Using the SST(0K231-2C200), install a new front oil seal.
    G13704395Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
  6. Install in the reverse order of removal.
