Removal And Installation

Remove the intelligent variable transmission (IVT).
(Refer to Intelligent Variable Transmission (IVT) System (Continuously Variable Transmission) - "INTELLIGENT VARIABLE TRANSMISSION (IVT) ")

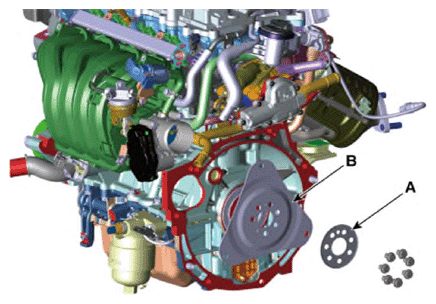

Remove the adapter plate (A) and drive plate (B).
Tightening torque:

71.5 - 75.5 N.m (7.3 - 7.7 kgf.m, 52.8 - 55.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the drive plate bolts.
Install in the reverse order of removal.
