Removal And Installation

  1. Disconnect the battery negative terminal.
  2. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - ENGINE ROOM UNDER COVER ")

  3. Drain the Coolant.

    (Refer to Cooling System - "COOLANT ")

  4. Remove the cooling fan assembly.

    (Refer to Cooling System - "COOLING FAN ")

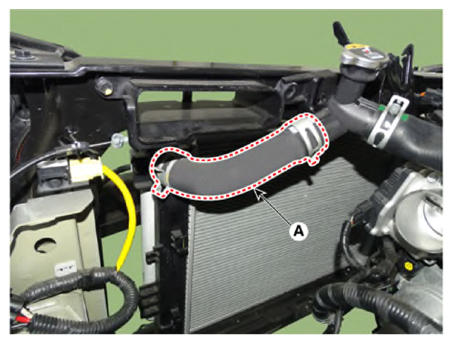

  5. Disconnect the radiator upper hose (A).
    G13704037Courtesy of KIA MOTORS AMERICA, INC.

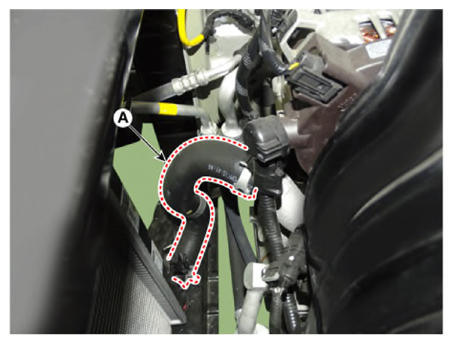

  6. Disconnect the radiator lower hose (A).
    G13704038Courtesy of KIA MOTORS AMERICA, INC.

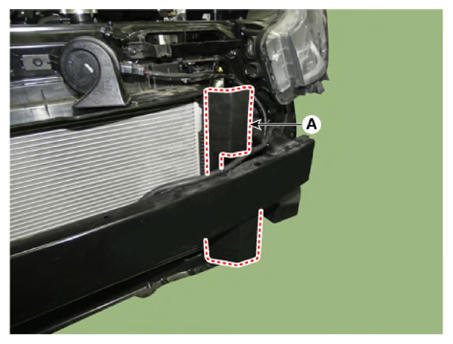

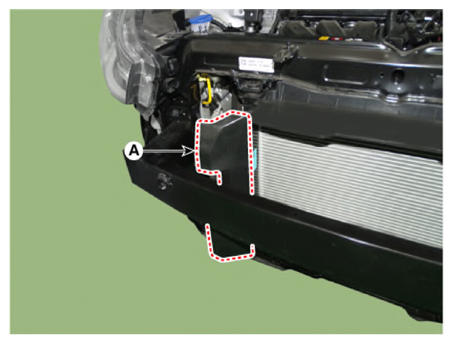

  7. Remove the air guard (A).

    [LH]

    G13704039Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13704040Courtesy of KIA MOTORS AMERICA, INC.

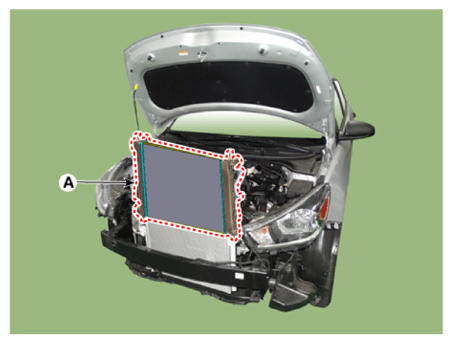

  8. Separate the condenser from the radiator and then pull the radiator (A) upward and remove it from engine room.
    G13704041Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
  10. Fill the radiator with coolant.

    (Refer to Cooling System - "COOLANT ")

    NOTE: The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
  11. Start engine and check for leaks.
  12. Recheck the coolant level.
