Components And Components Location: Components

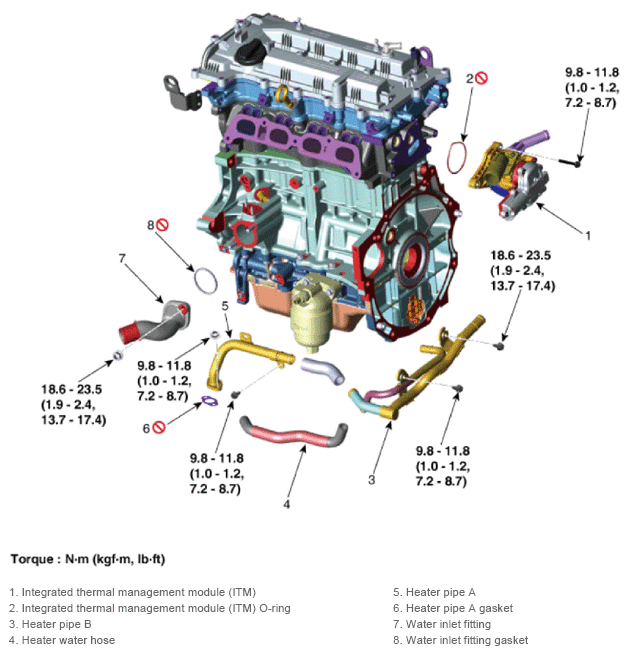

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification

G13704043

Courtesy of KIA MOTORS AMERICA, INC.
