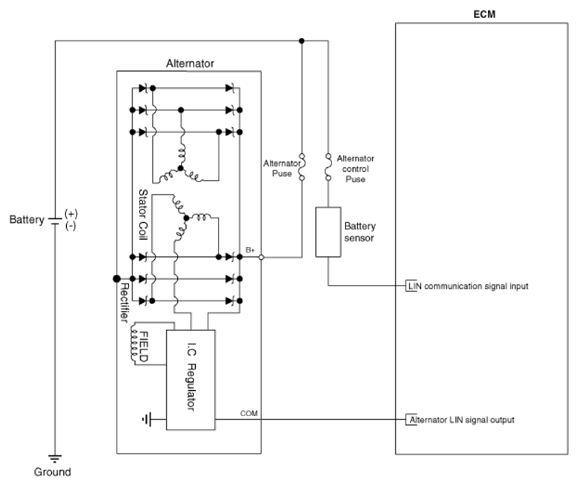

Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.

Information

• COM signal  - When controlling the voltage generated, the ECM sends the target voltage data to the alternator via a LIN signal.
• B+ terminal  -The output voltage from the generator travels to the battery via the B+ terminal.
