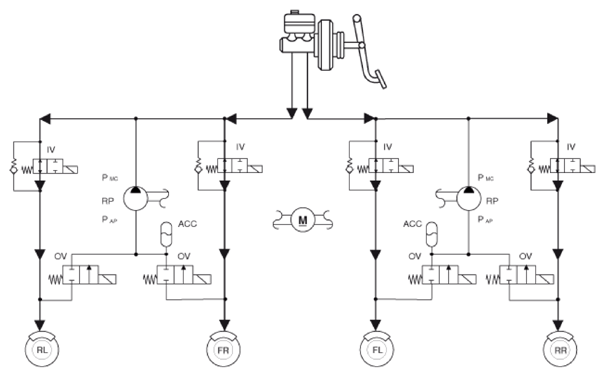

- Normal Braking without ABS
| |
Inlet valve(IV) |
Outlet valve(OV) |
Return pump |
| Operation |
Open |
Close |
OFF |
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

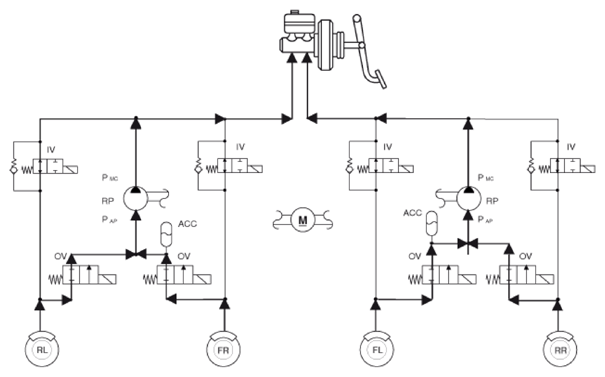

- Decrease Mode
| |
Inlet valve(IV) |
Outlet valve(OV) |
Return pump |
| Operation |
Close |
Open |
ON(Motor speed control) |
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

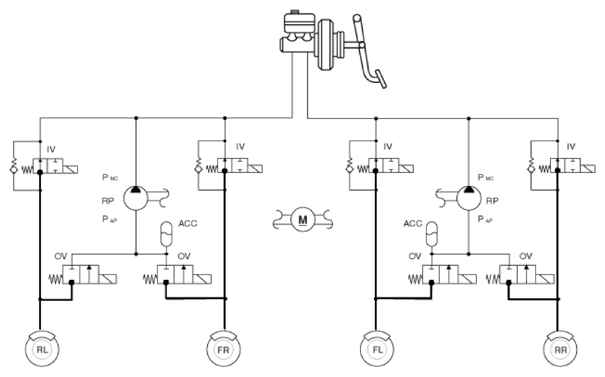

- Hold Mode
| |
Inlet valve(IV) |
Outlet valve(OV) |
Return pump |
| Operation |
Close |
Close |
ON(Motor speed control) |
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

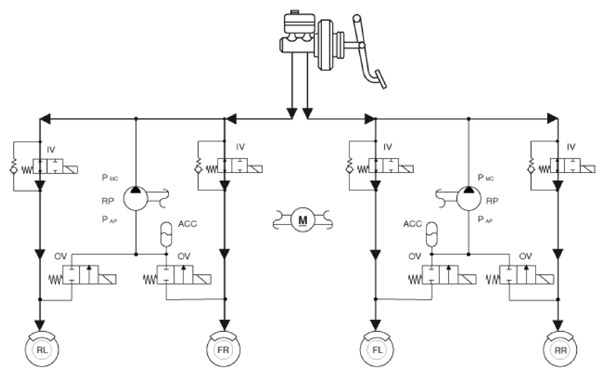

- Increase Mode
| |
Inlet valve(IV) |
Outlet valve(OV) |
Return pump |
| Operation |
Open |
Close |
ON(Motor speed control) |
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump
