Repair Procedures: Removal

  1. Disconnect the negative(-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

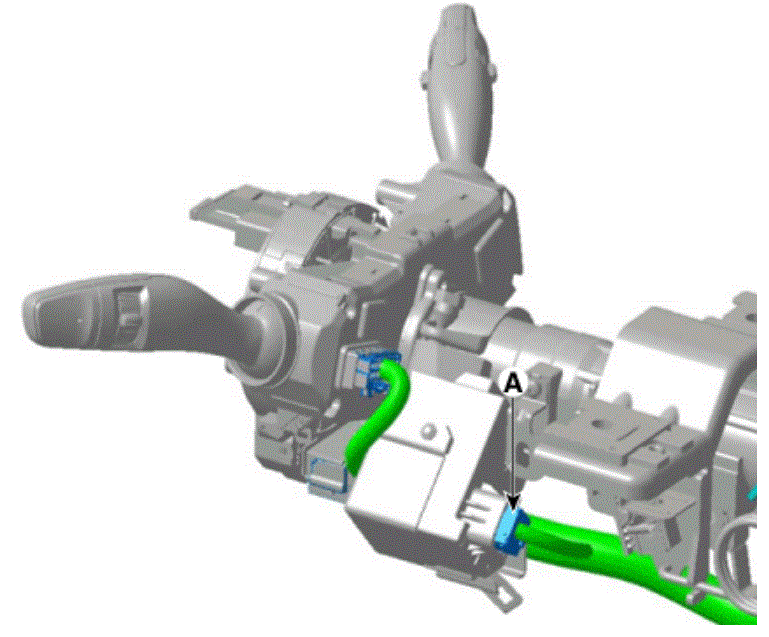

  4. Disconnect the electronic steering column lock connector (A).
    G00607695Courtesy of KIA MOTORS AMERICA, INC.

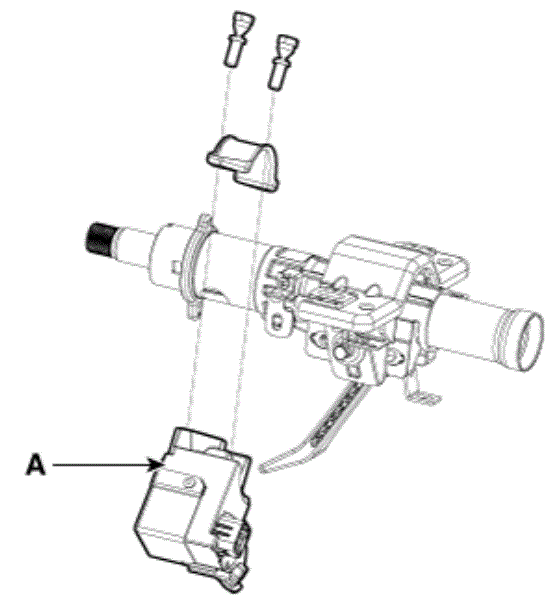

  5. Remove the electronic steering column lock (A).

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

    G00607696Courtesy of KIA MOTORS AMERICA, INC.
