Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

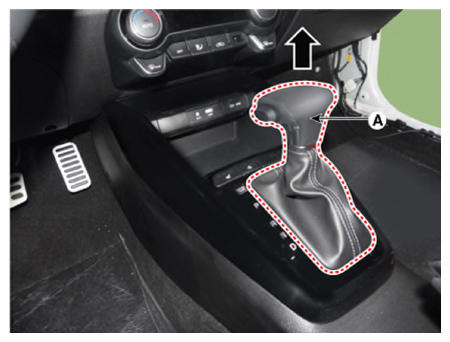

1. To remove the gear knob & gear boots (A) pull both of it up.

   Courtesy of HYUNDAI MOTOR AMERICA

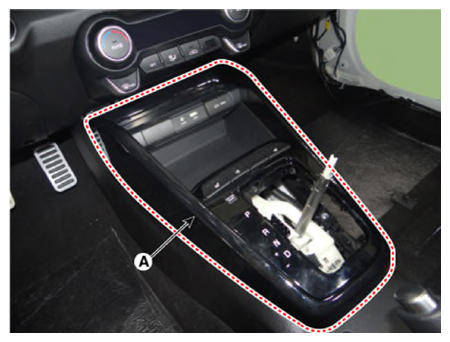

2. Using a remover, remove the floor console upper cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

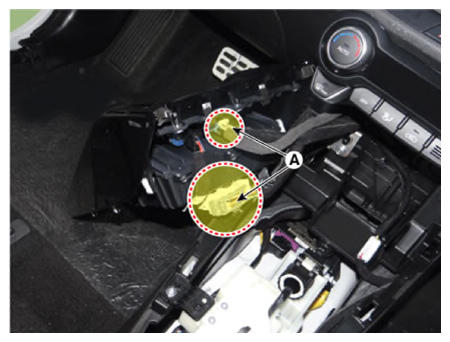

3. Disconnect the connectors (A) from the floor console upper cover.

   Courtesy of HYUNDAI MOTOR AMERICA

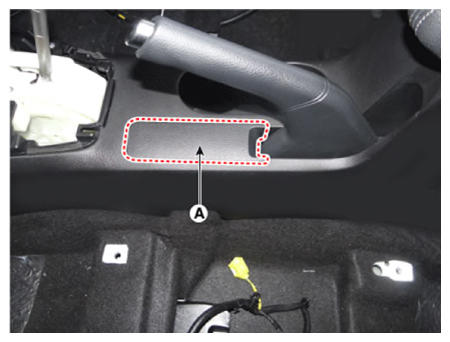

4. Remove the parking brake cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

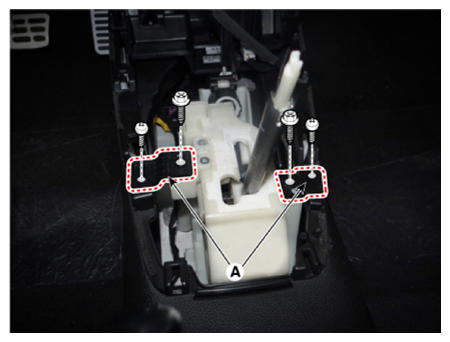

5. Remove the console bracket (A) after loosening the screws.

   Courtesy of HYUNDAI MOTOR AMERICA

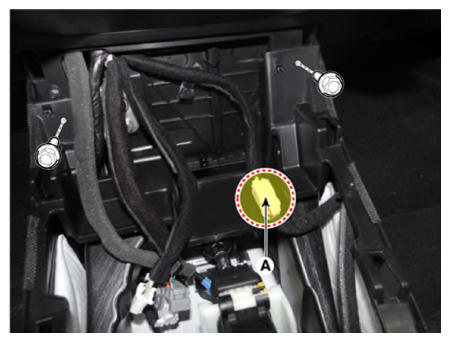

6. Disconnect the console connector (A) and loosen the mounting bolt.

   Courtesy of HYUNDAI MOTOR AMERICA

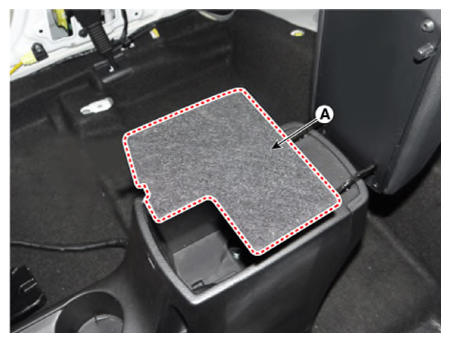

7. Remove the console armrest mat (A).

   Courtesy of HYUNDAI MOTOR AMERICA

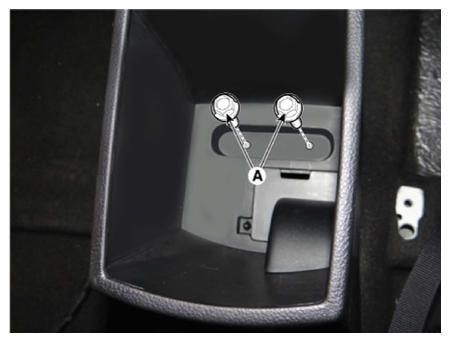

8. Loosen the console upper mounting bolts (A).

   Courtesy of HYUNDAI MOTOR AMERICA

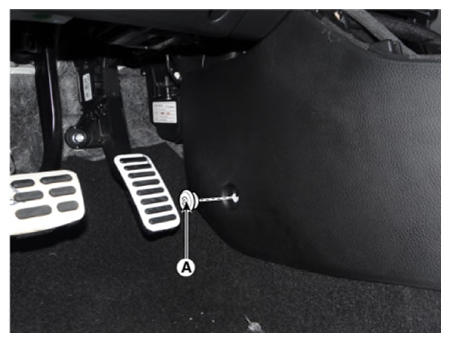

9. Loosen the console both side front mounting screw (A).

   Courtesy of HYUNDAI MOTOR AMERICA

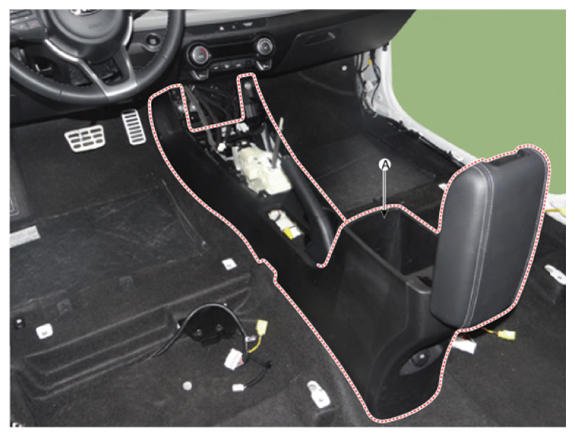

10. Remove the console complete (A).

    Courtesy of HYUNDAI MOTOR AMERICA

11. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips.
