Home >> Kia >> 2021 >> Rio LX >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Anti-Lock Brake System (Abs) >> ABS Control Unit >> Repair Procedures >> Diagnostic Procedure By Using Diagnostic Device >> Variant Coding

Variant Coding

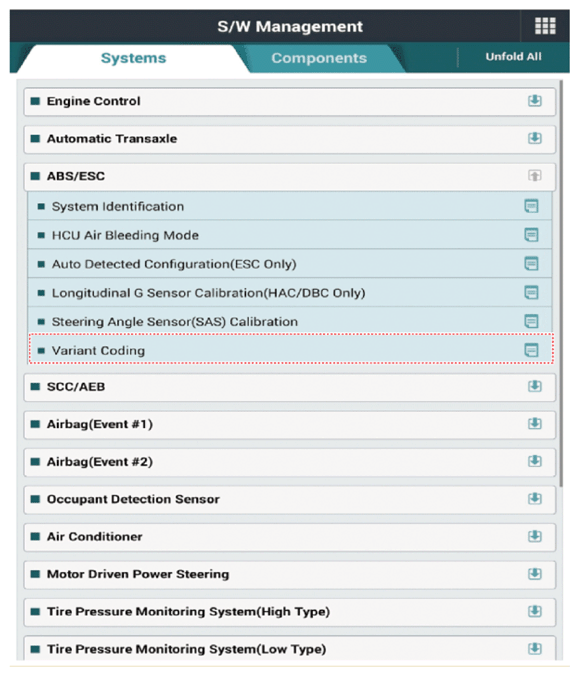

G13705478Courtesy of KIA MOTORS AMERICA, INC.

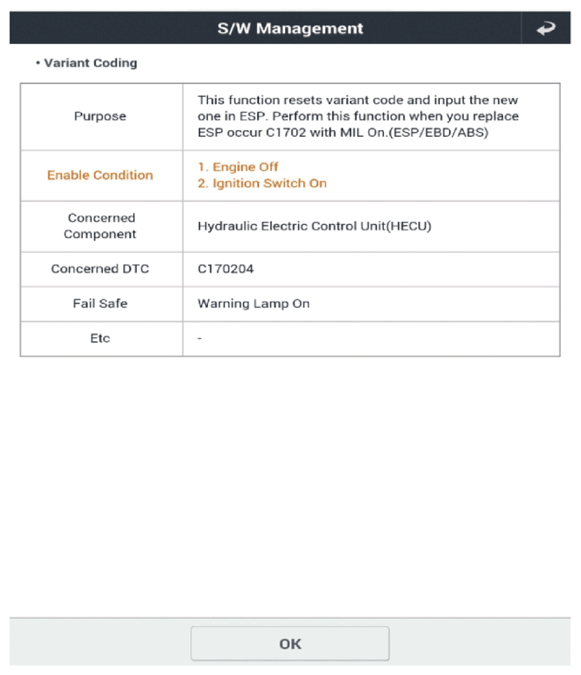

G13705479Courtesy of KIA MOTORS AMERICA, INC.

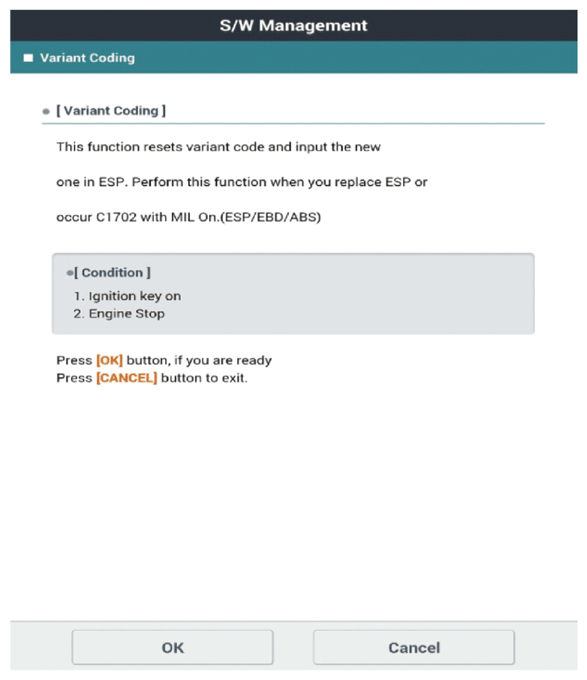

G13705480Courtesy of KIA MOTORS AMERICA, INC.

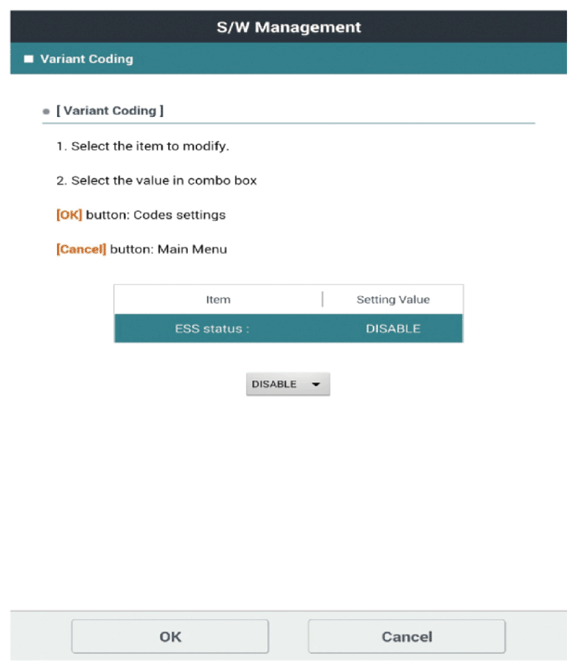

G13705481Courtesy of KIA MOTORS AMERICA, INC.

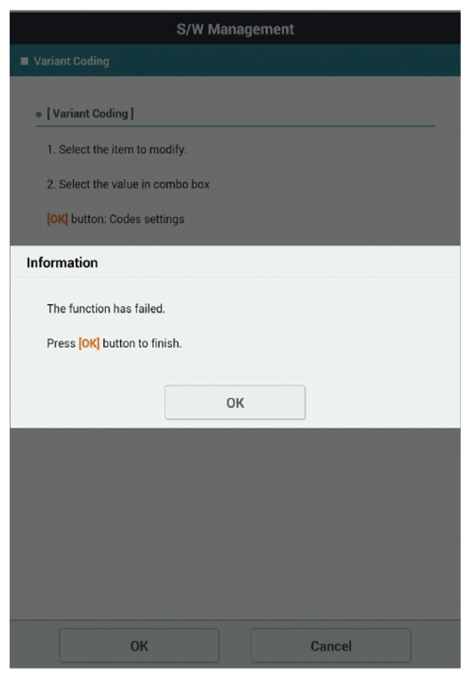

G13705482Courtesy of KIA MOTORS AMERICA, INC.
