Tailgate/Trunk Lock Module Inspection

Remove the tailgate trim or trunk lid trim.
(Refer to Body - "LIFTGATE TRIM ")

(Refer to Body - "TRUNK LID TRIM ")
Disconnect the connectors from the actuator.

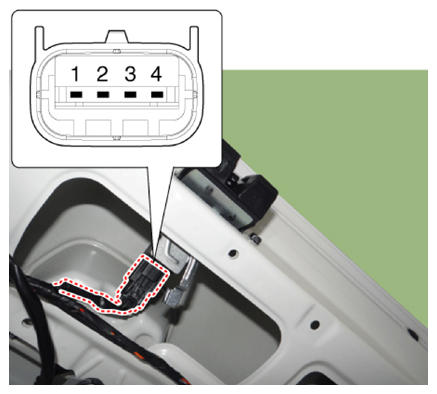

[5 Door]

Courtesy of KIA MOTORS AMERICA, INC.

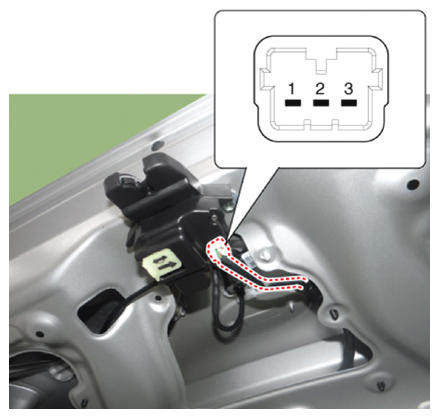

[4 Door]

Courtesy of KIA MOTORS AMERICA, INC.

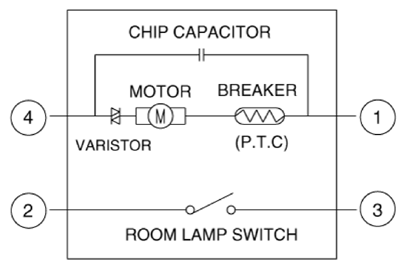

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
[5 Door]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[4 Door]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Checking the tailgate of the vehicle power option power refers to the tailgate module.
