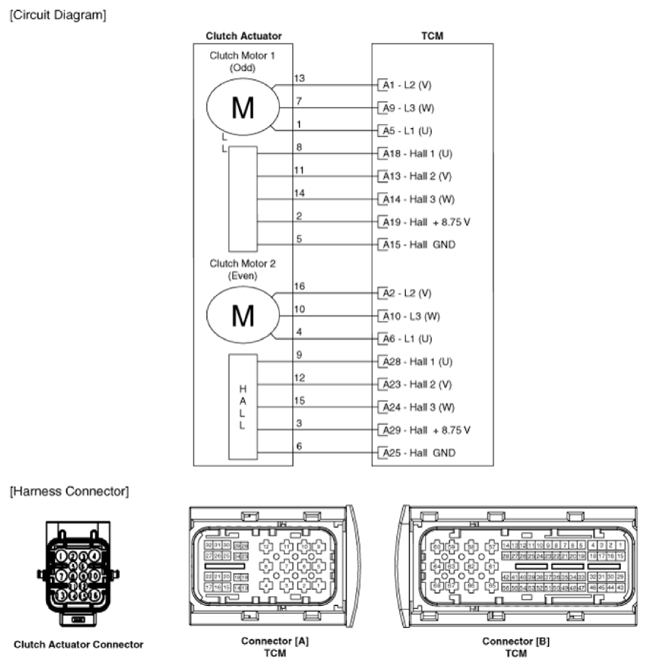

Home >> Kia >> 2021 >> Niro Plug-In Hybrid LXS >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Double Clutch Transmission Control System (PHEV) >> Clutch Actuator Assembly >> Schematic Diagrams
