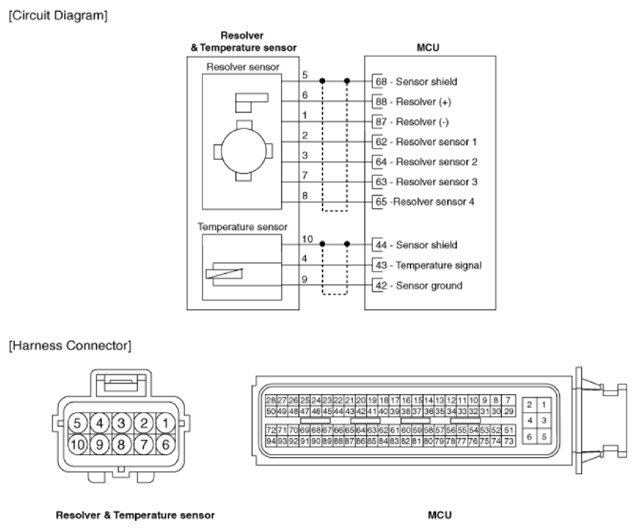

Home >> Kia >> 2021 >> Niro Plug-In Hybrid LXS >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Hybrid Motor Control System (PHEV) >> Resolver Sensor >> Schematic Diagrams >> Part Circuit Diagram >> HSG
