Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim [RH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

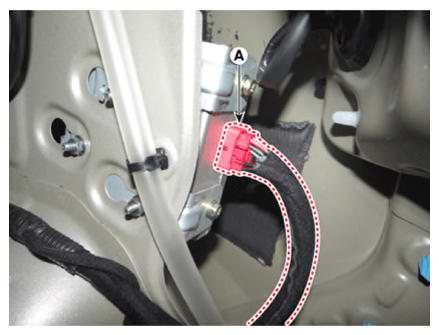

  3. Disconnect the AC inverter unit connector (A).
    G13350812Courtesy of KIA MOTORS AMERICA, INC.

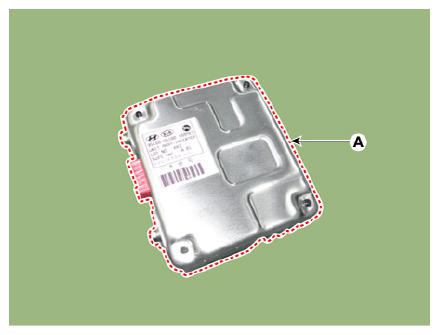

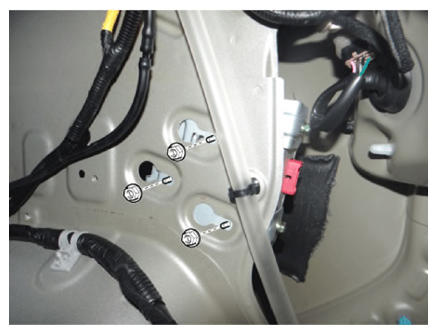

  4. Remove the AC inverter unit (A) after loosening the mounting nuts.
G13350813Courtesy of KIA MOTORS AMERICA, INC.
G13350814Courtesy of KIA MOTORS AMERICA, INC.
