Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

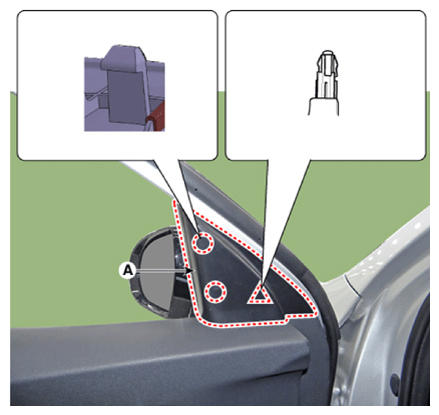

Using a remover, remove the front door quadrant inner cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

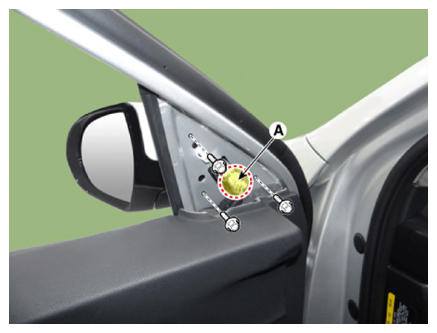

Disconnect the outside rear view mirror connector (A) and loosen the mounting bolts.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

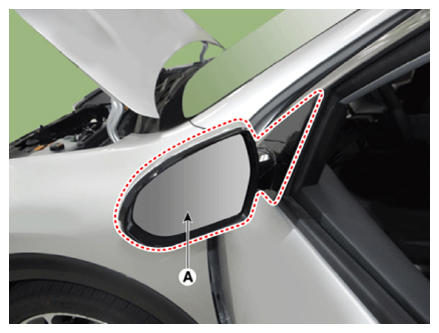

Remove the outside rear view mirror (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
